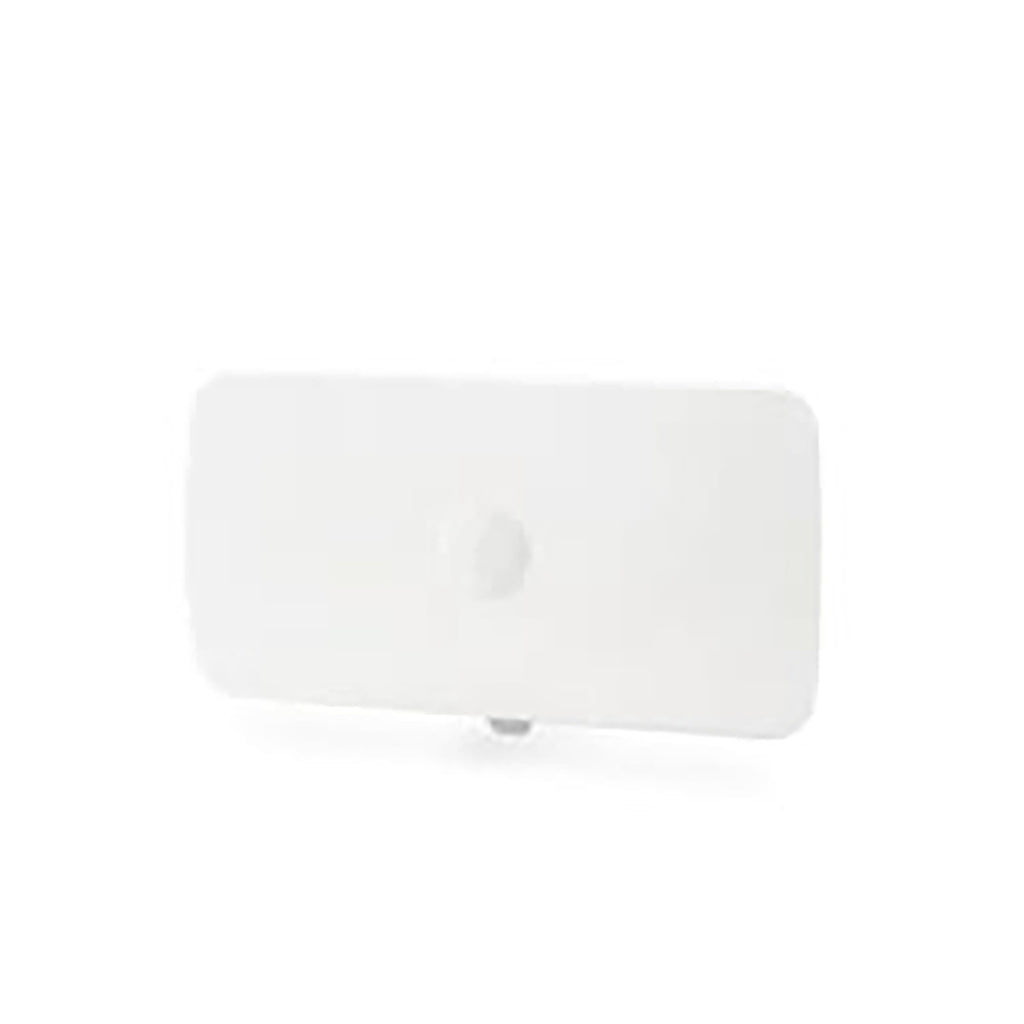

The force 300-16 subscriber module is part of the Cambium ePMP Force 300 Series, offering high performance and low latency across both point-to-multipoint (PMP) and point-to-point (PTP) deployments.
The 300-16 offers a compelling, compact subscriber or point to point solution resilient to interference. Supporting peak throughput over 500 Mbps
The ePMP Force 300-16 supports channel size configuration from 20MHz up to 80MHz and modulates up to 256 QAM.
QoS management offers an outstanding quality for triple play services – VoIP, video, and data – and provides three levels of traffic priority.
The ePMP Force 300-16 supports real time spectrum monitoring with out degradation in throughput with a horizontal orientation mount providing a 15 degree beamwidth and 16dBi gain, the F300-16 offers a compelling, compact subscriber or point to point solution resilient to interference.
Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 ms.
This platform is for the user base that wants a smaller on premises footprint while enabling high gain.
Install is a breeze with the easy to install mount, capable of pole and wall mounting.
Plan your links with the free Cambium Link Planner Tool
| Manufacturer |
Cambium |
| Manufacturer SKU |
C050910C213B |
| Max. Transmission Speed |
Upto 600mps |
| Frequency Range |
4910–6080 MHz
|
| Antenna Type |
Panel |
|
|
16 dBi |
| 3 dB Beamwidth Azimuth |
15°
|
| 3 dB Beamwidth Elevation |
30° |
| Ethernet Interfaced |
10/100/1000 BaseT, compatible with Cambium PoE & standard PoE pinouts |
| Protocols Used |
IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management |
IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro |
| VLAN |
802.1Q with 802.1p priority |
| Environmental |
IP55 |
| Temperature |
-30°C to 60°C
|
| Weight |
0.50 kg (1.1 lb) Incl. mounting bracket |
| Dimensions |
12.4 x 25.1 x 11.9 cm with mounting bracket |
| Power Consumption |
12W (Up to 15W in extreme cold temperatures when heater
is activated |
| Input Voltage |
30V passive PoE
(14–30V DC input) |
| Encryption |
128-bit AES (CCMP mode |
| Manufacturers |
Datasheet |
| Quick Start Guide |
Quick Start Guide |
| Manufacturers Warranty |
3 Years |
