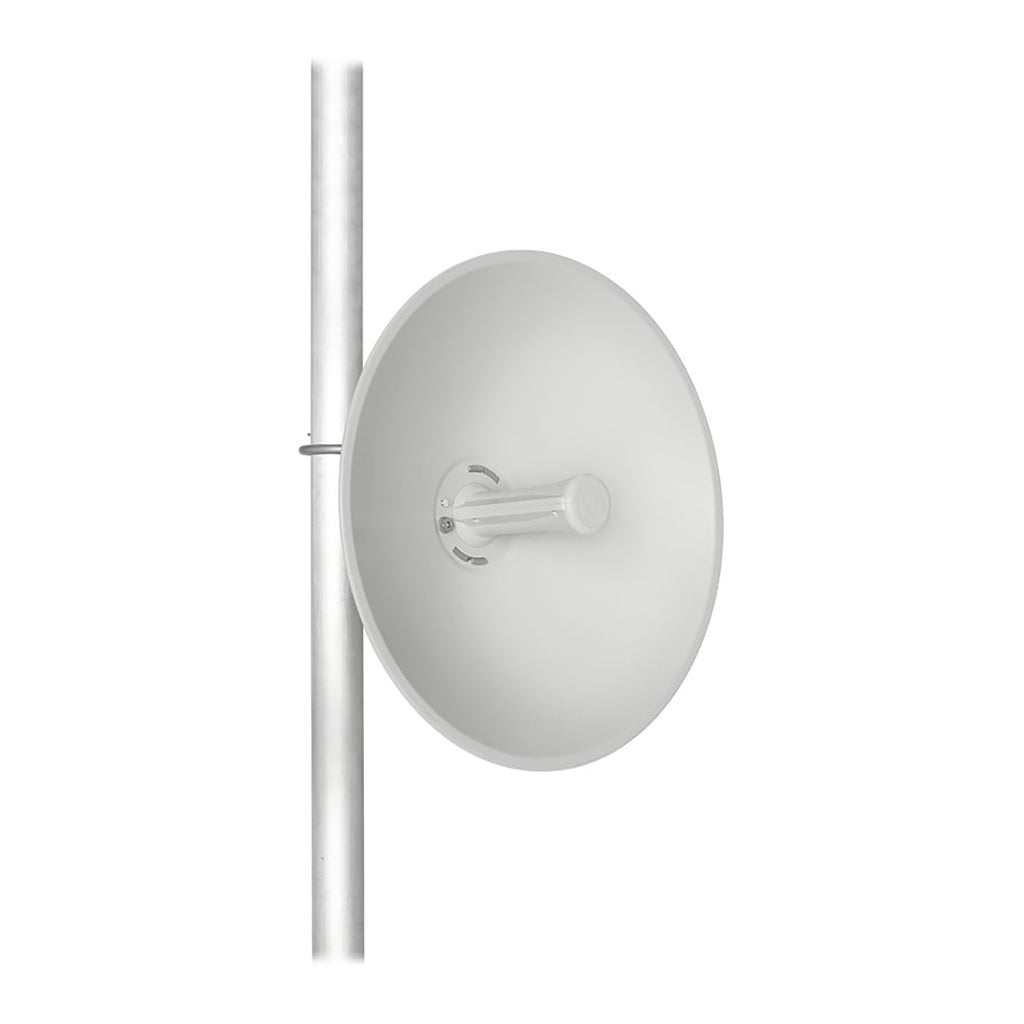

The Cambium Force 300-25 High Gain Radio is part of the Cambium ePMP Force 300 family, offering a wide range of high-performance subscriber modules for PTP and PMP fixed wireless broadband applications.
Plan your links with the free Cambium Link Planner Tool
| Manufacturer |
Cambium |
| Manufacturer SKU |
C050910C203B |
| Max. Transmission Speed |
Upto 600mps |
| Frequency Range |
4910–6080 MHz
|
| Antenna Type |
Dish |
|
|
25 dBi |
| 3 dB Beamwidth Azimuth |
6° to 10° |
| 3 dB Beamwidth Elevation |
6° to 10° |
| Ethernet Interfaced |
10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts |
| Protocols Used |
IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management |
IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro |
| VLAN |
802.1Q with 802.1p priority |
| Environmental |
IP55 |
| Temperature |
-22°F to +140°F |
| Weight |
2.4 kg |
| Dimensions |
47 cm x 31 cm |
| Power Consumption |
12W (Up to 15W in extreme cold temperatures when heater
is activated |
| Input Voltage |
30V passive PoE
(14–30V DC input) |
| Encryption |
128-bit AES (CCMP mode |
| Manufacturers |
Datasheet |
| Quick Start Guide |
Quick Start Guide |
| Manufacturers Warranty |
3 Years |
