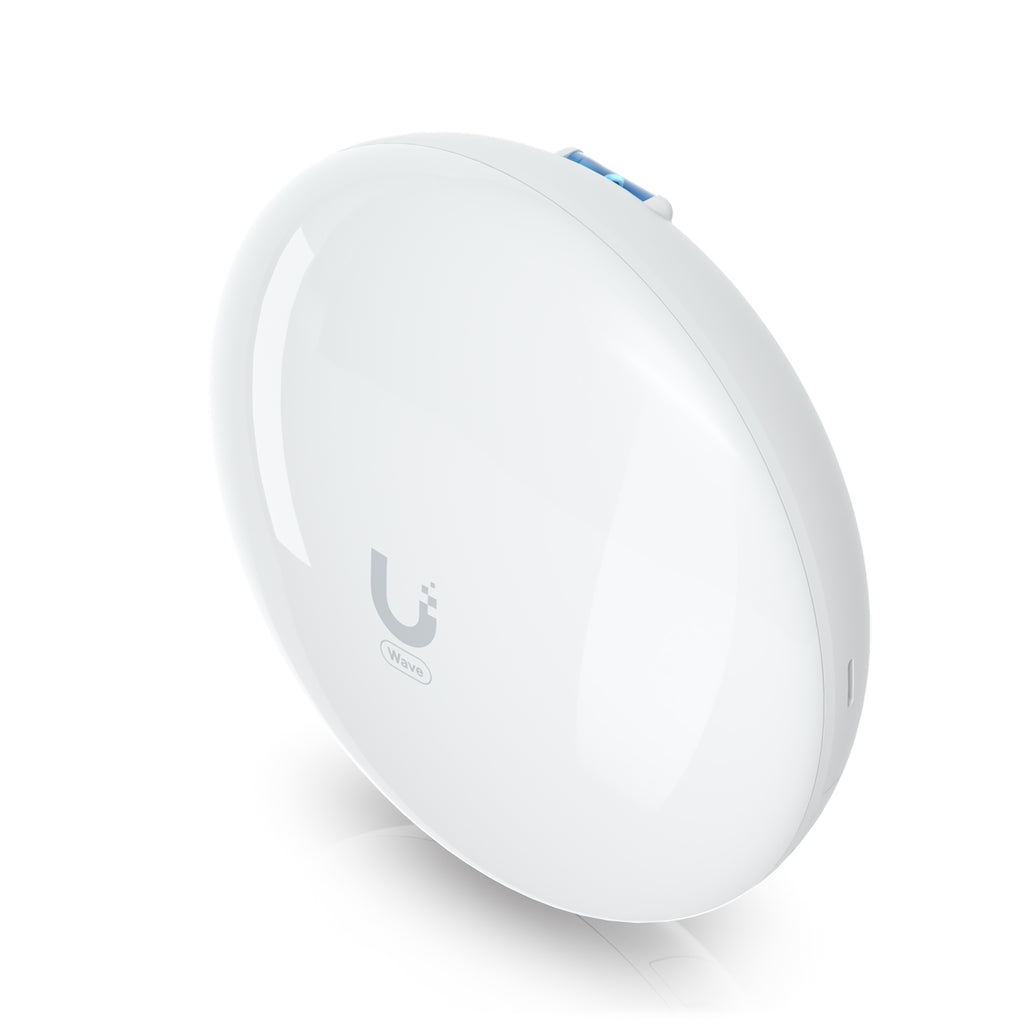

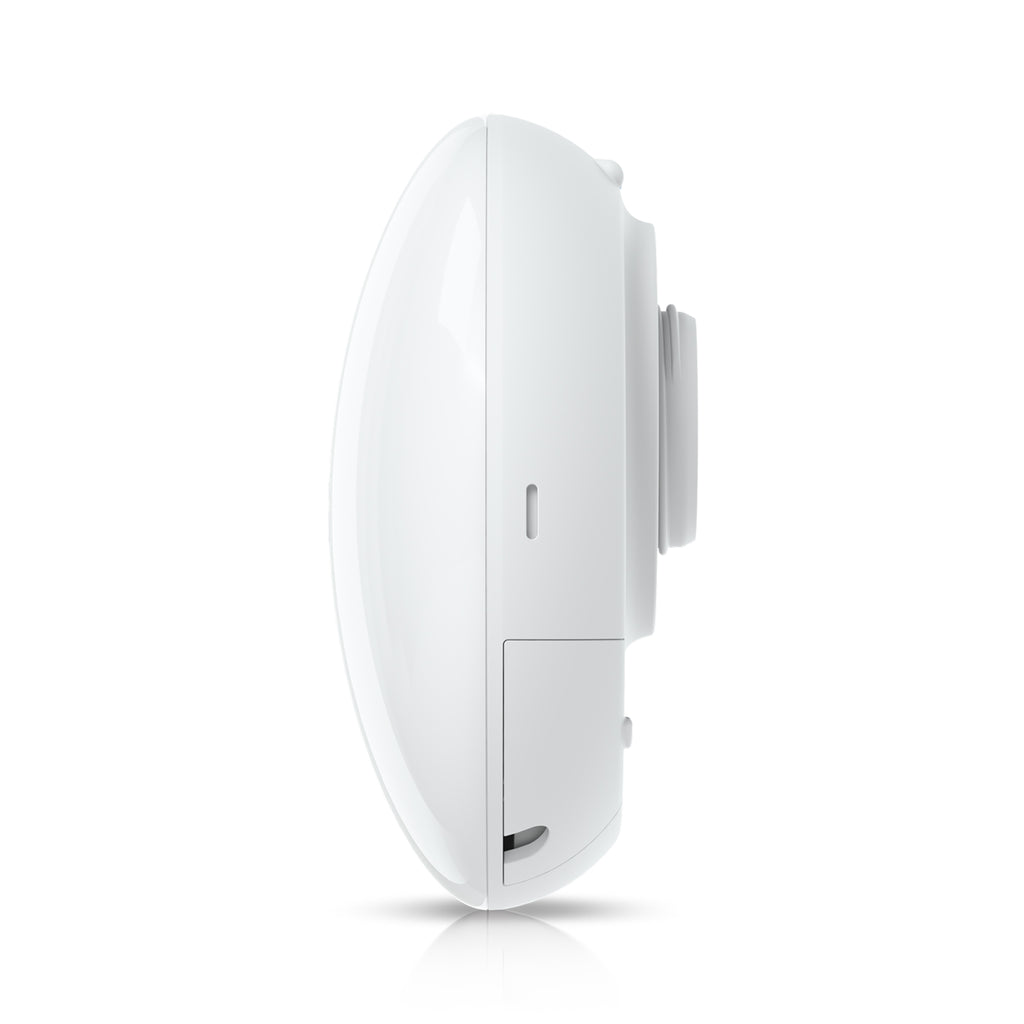

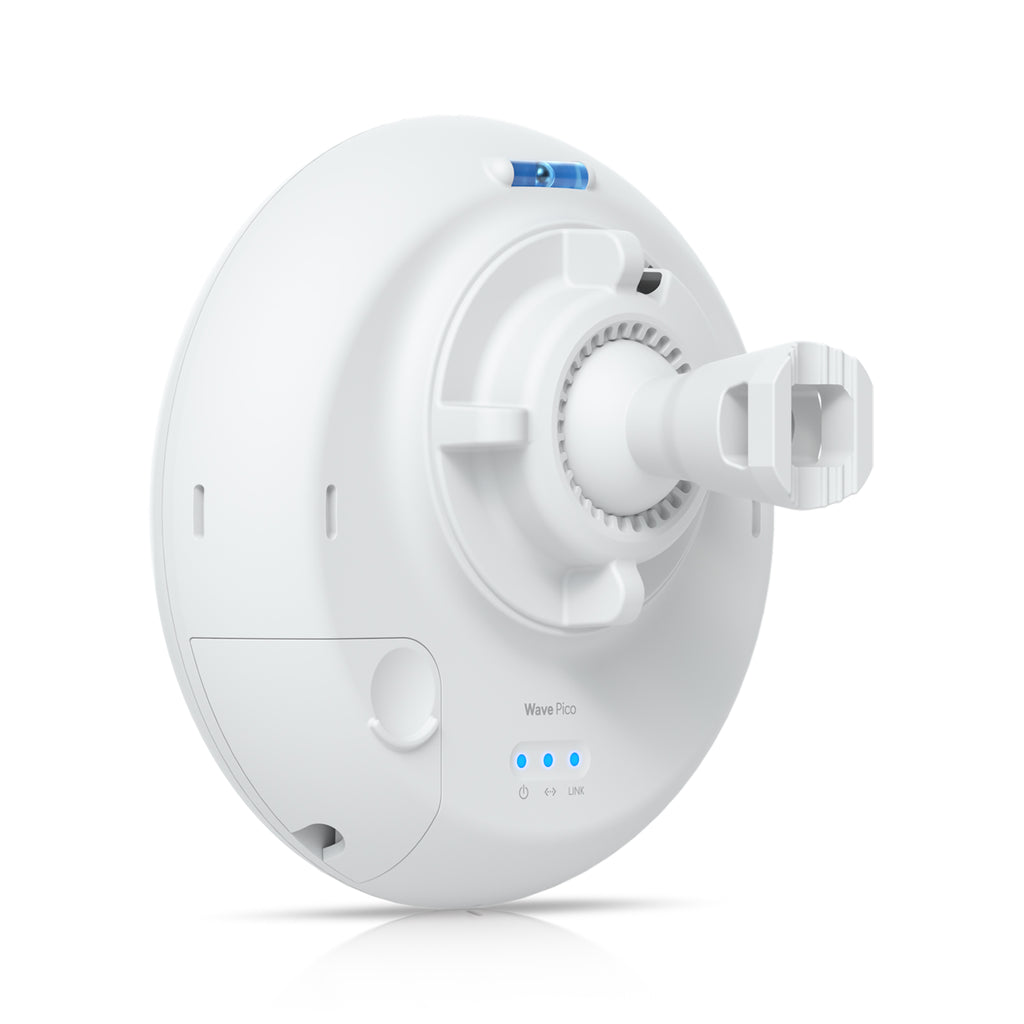

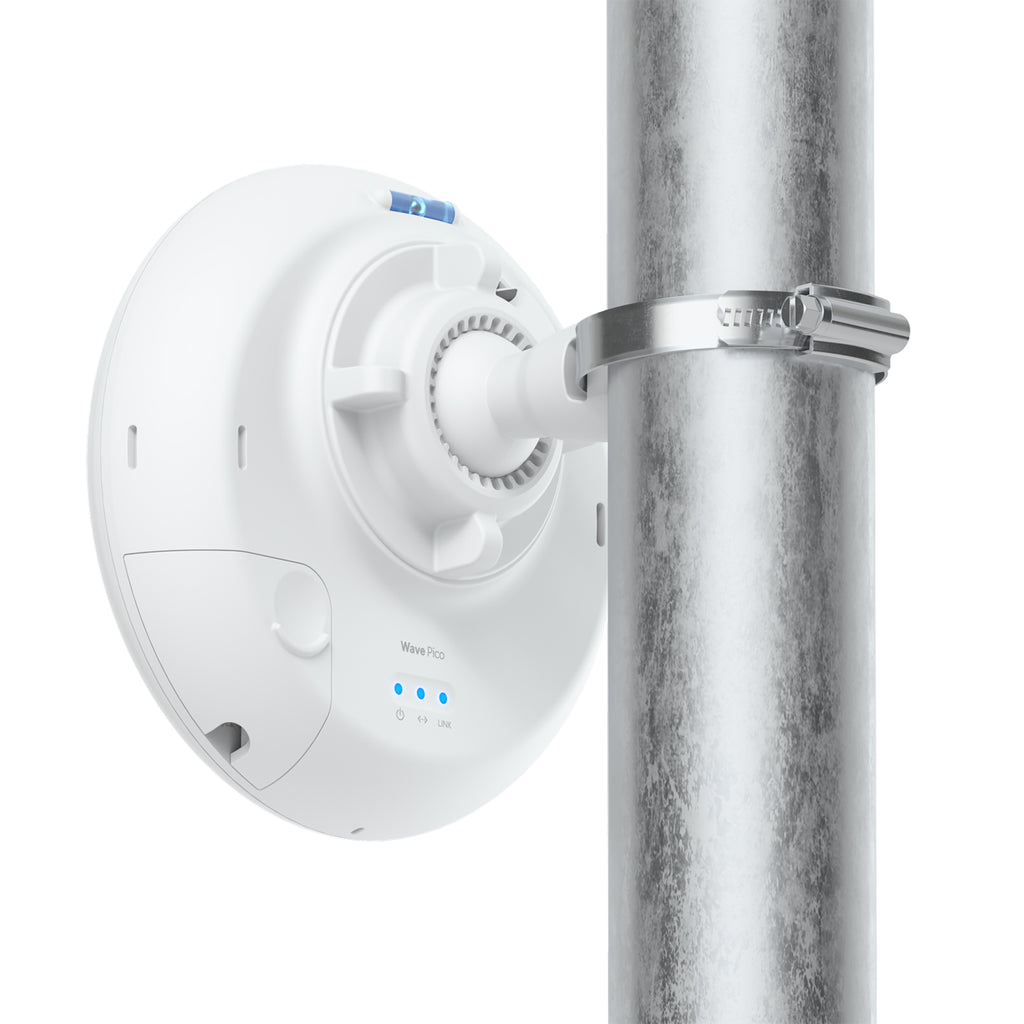

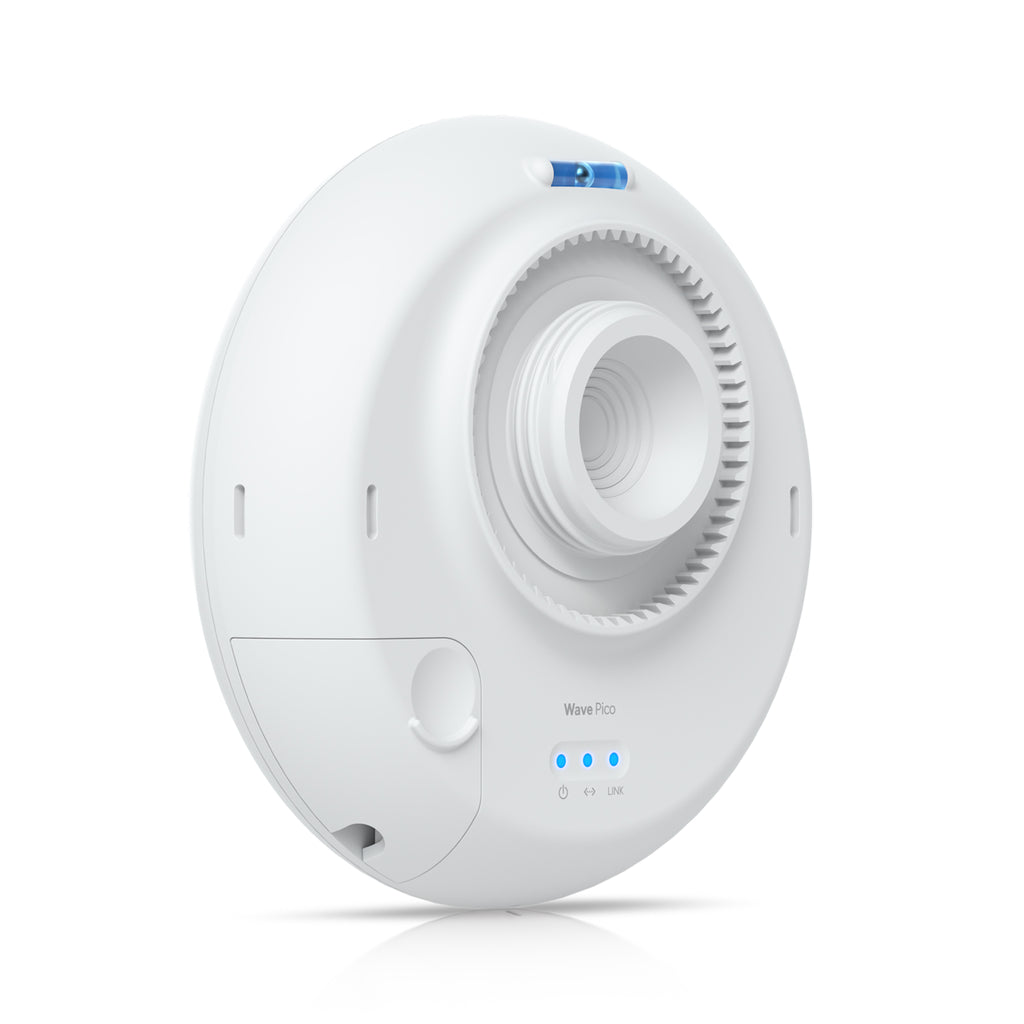

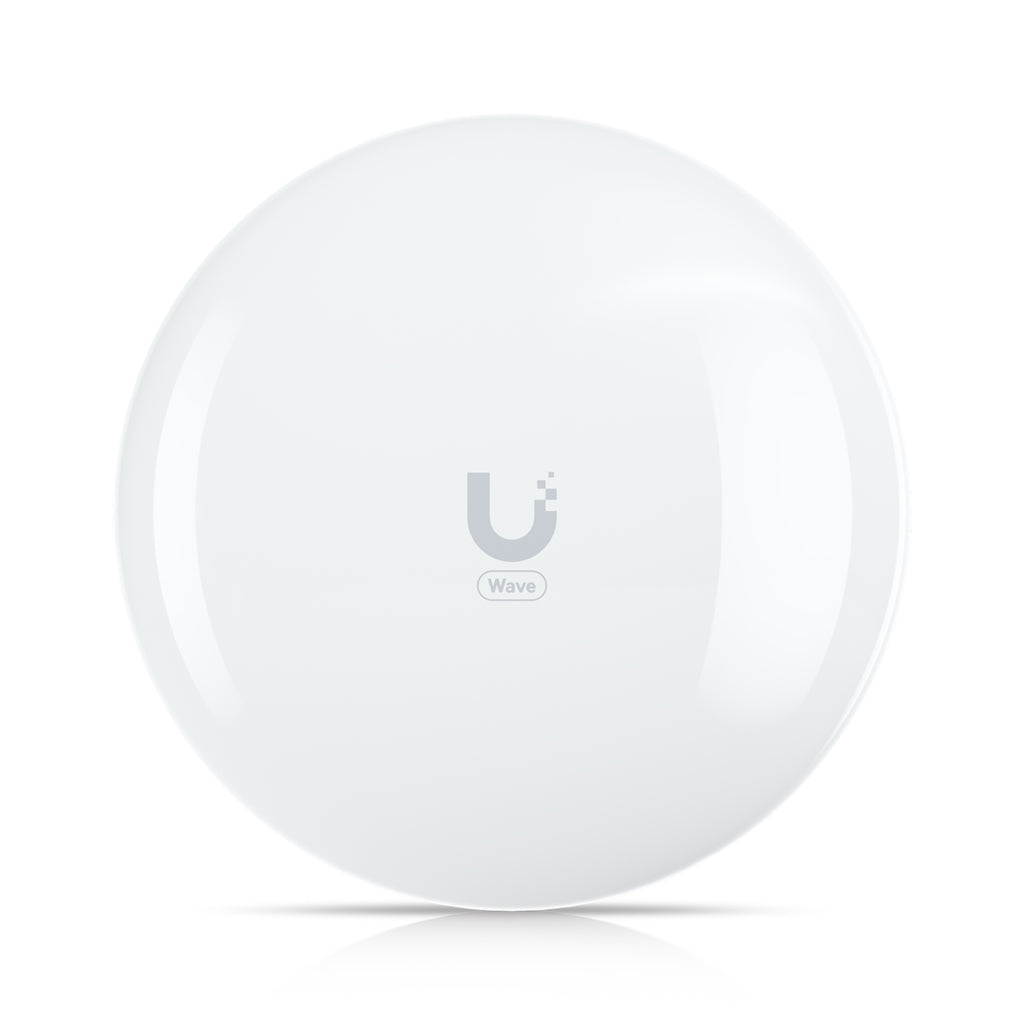

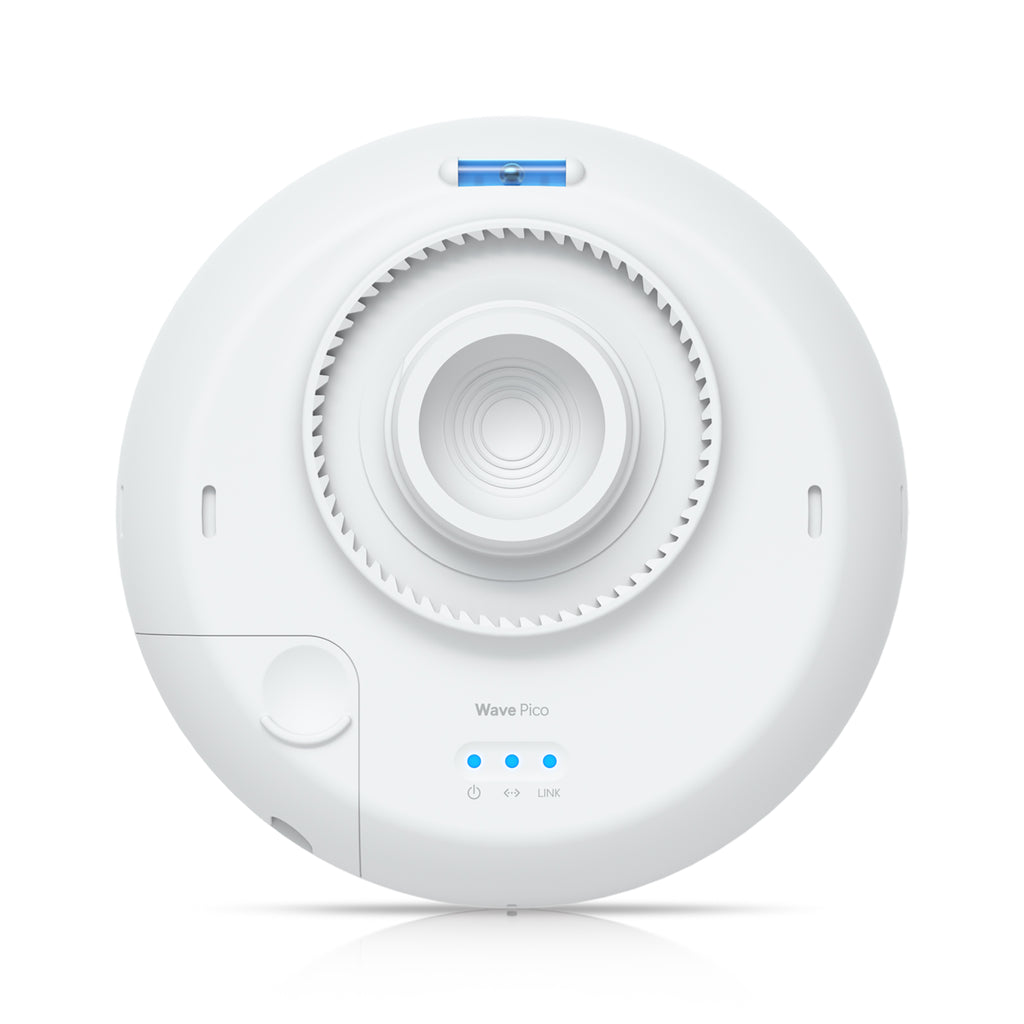

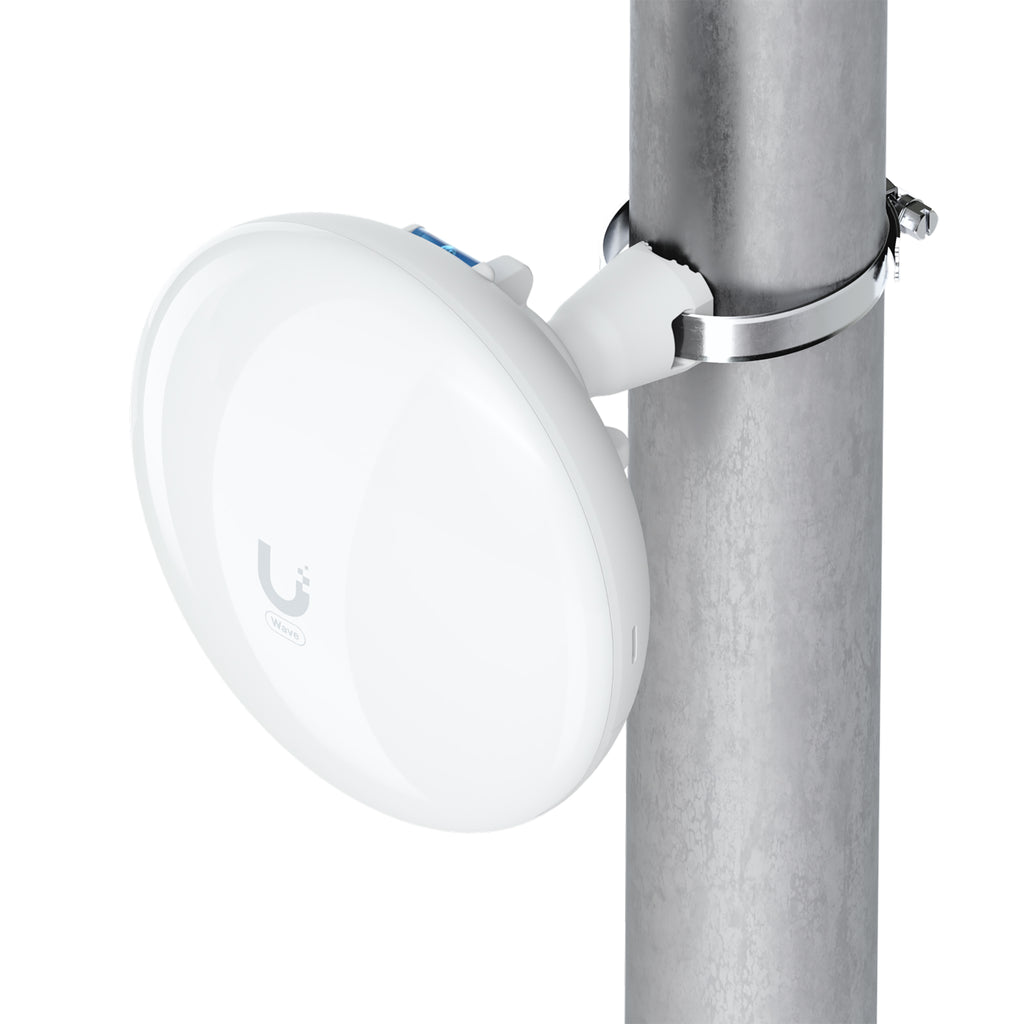

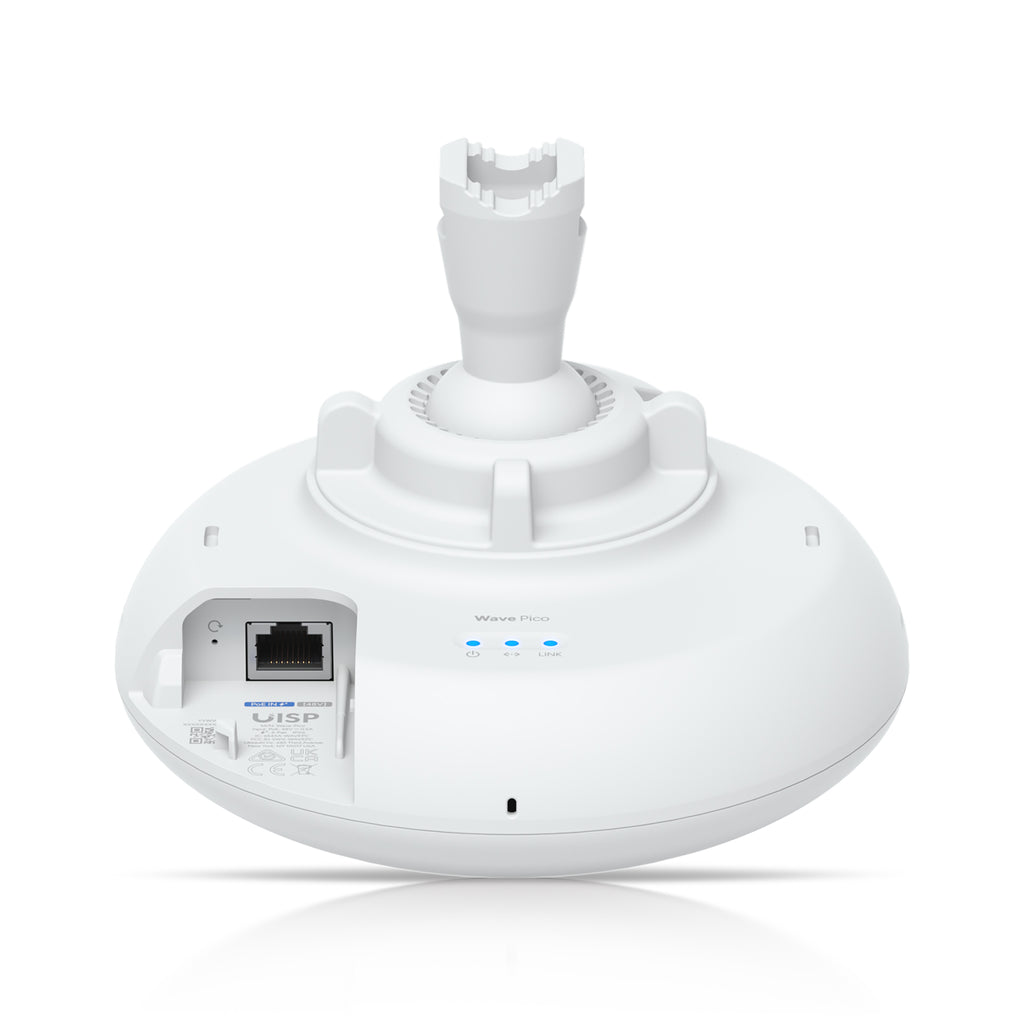

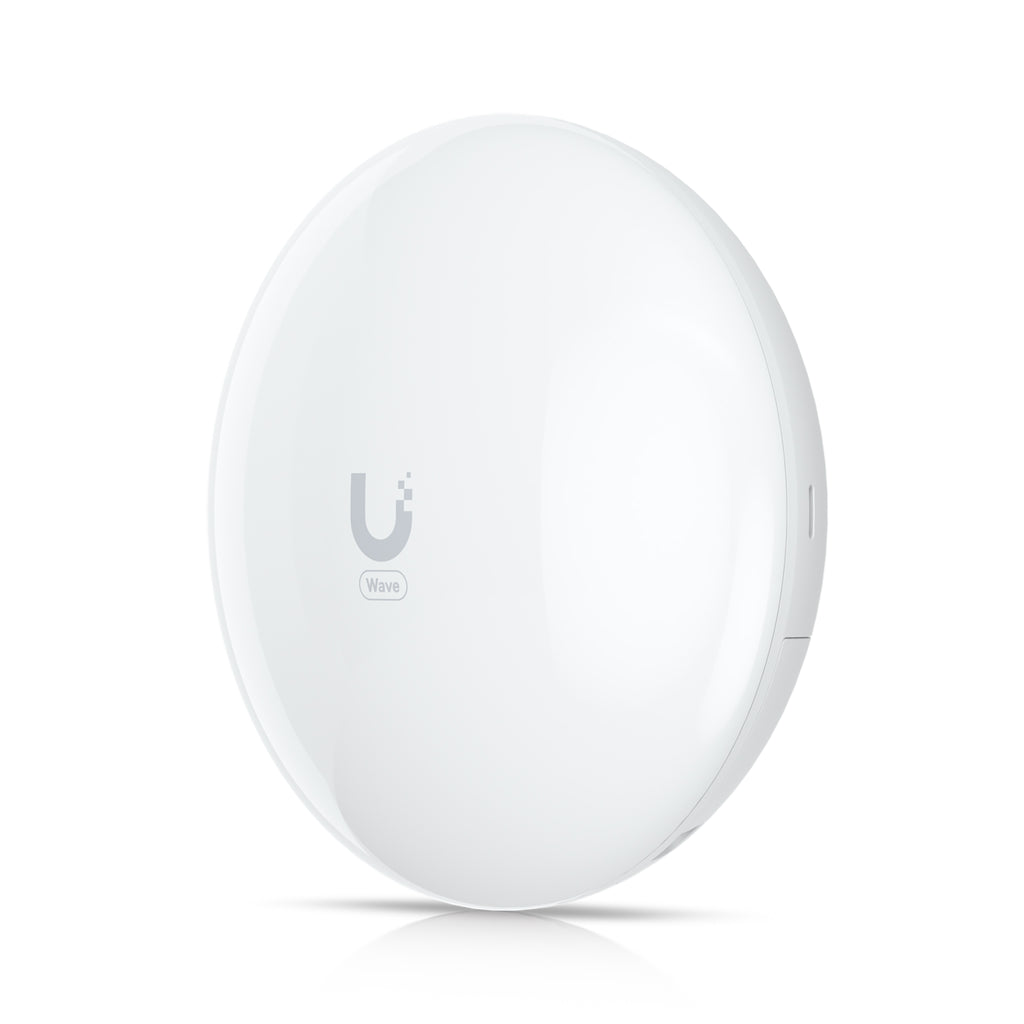

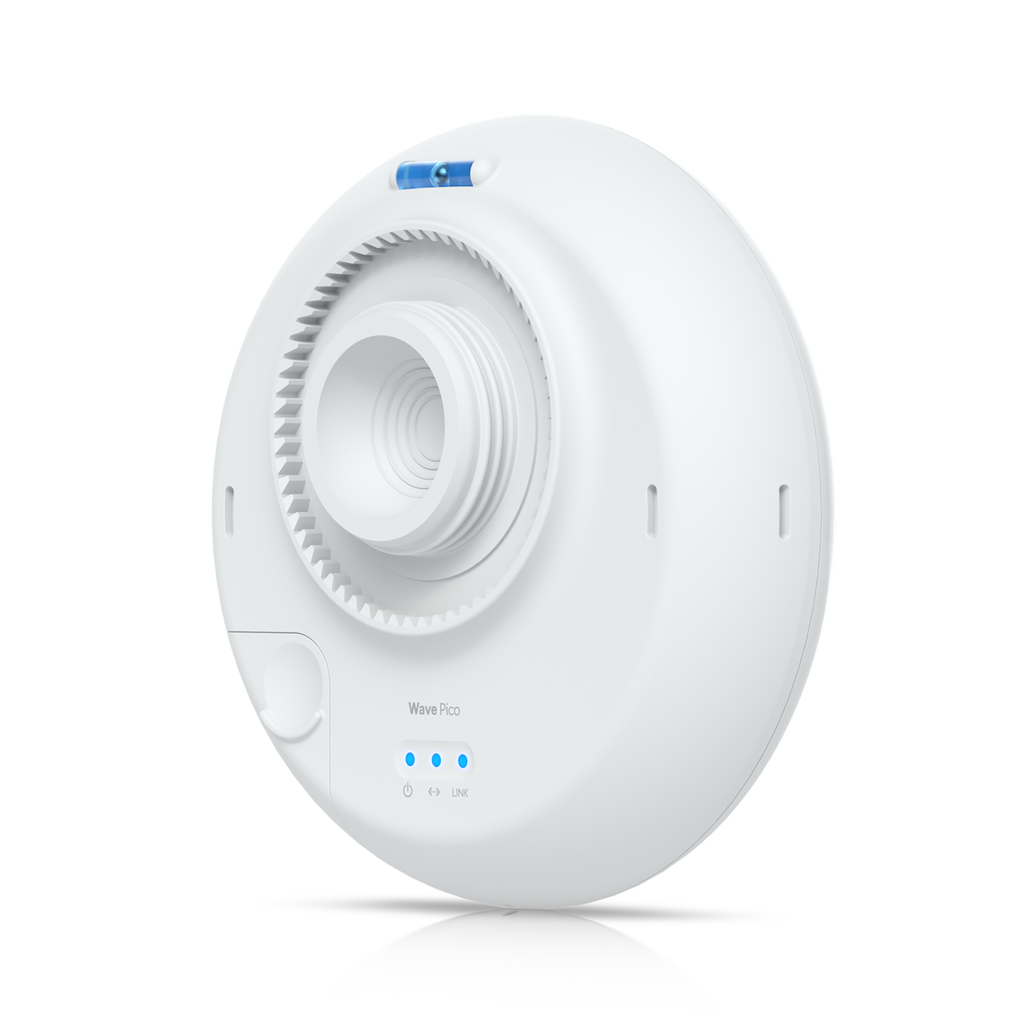

The Ubiquiti Wave Pico is a lightweight, compact 60 GHz PtMP station powered by Wave Technology.
Ubiquiti Wave-Pico offers a maximum throughput of 2 Gbps (1 Gbps duplex) and features a 5 GHz weatherproof backup radio with up to 800 Mbps throughput. The device includes a GbE RJ45 port and integrated Bluetooth, housed in a UV stabilised polycarbonate enclosure for durability.
| Manufacturer |
Ubiquiti |
| Manufacturer SKU |
WAVE-PICO |
| Max. Transmission Speed |
2 Gbps |
| Antenna Gain |
27.7 dBi |
| Ingress Protection Rating |
IPX6 |
| Channel Bandwidths |
58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
Depends on regulatory region. |
| Beamwidth |
Azimuth: 3 dB 6°, Elevation: 3 dB 6° |
| Polarization |
Vertically linear |
| Operating Mode |
PtMP station, PtP |
| Networking Interface |

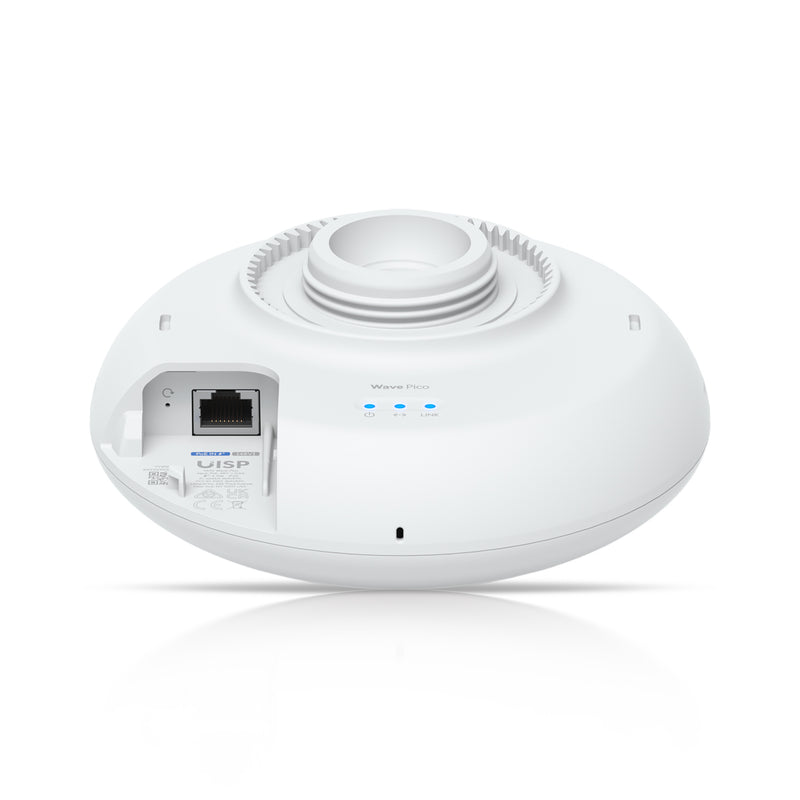

(1) GbE RJ45 port |
| Dimensions |
Ø152.1 x 55.8 mm
|
| Weight |
Without mount: 347 g (12.2 oz)
With mount: 409 g (14.4 oz) |
| Power Supply |
48V DC, 0.5A gigabit PoE adapter (Included)
Can be powered by a UISP Router or UISP Switch |
| Power Method |
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8 -)
Passive PoE 2-pairs (4, 5+; 7, 8 -), for 44–54V DC only |
| Power Consumption (max)
|
10W |
| Operating temperature |
-40 to 60° C (-40 to 140° F) |
| Humidity |
5 to 95% noncondensing |
| Manufacturers Datasheet |
Datasheet |
| Installation Guide |
Installation Guide |
| Manufacturer Warranty |
1 Year |
