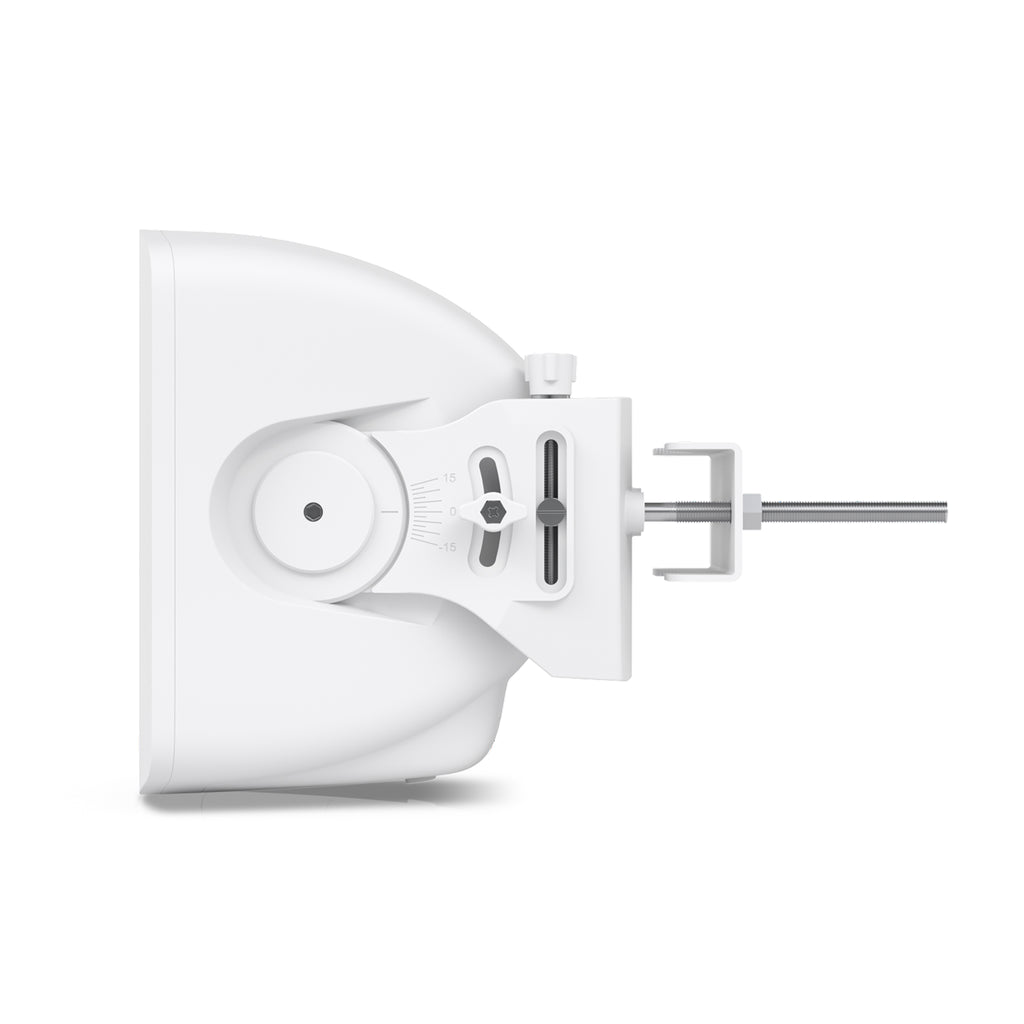

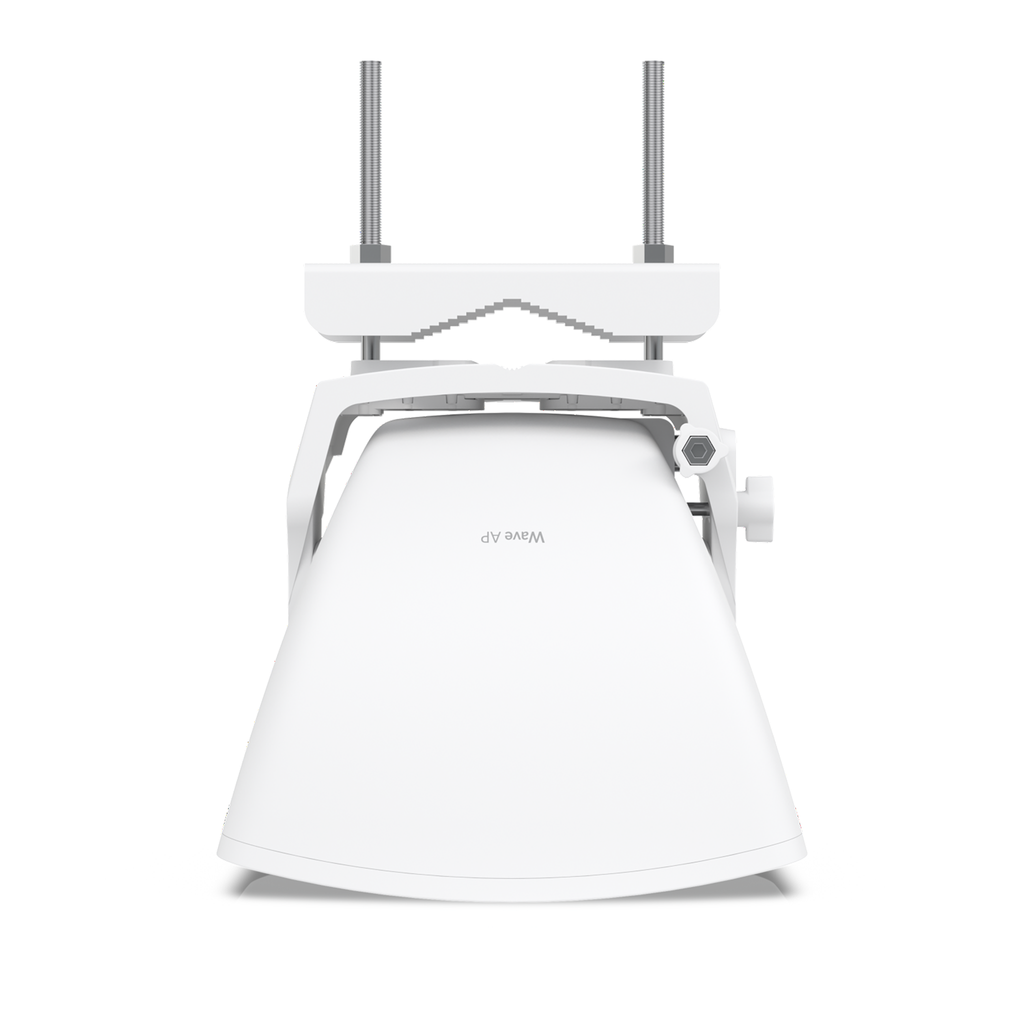

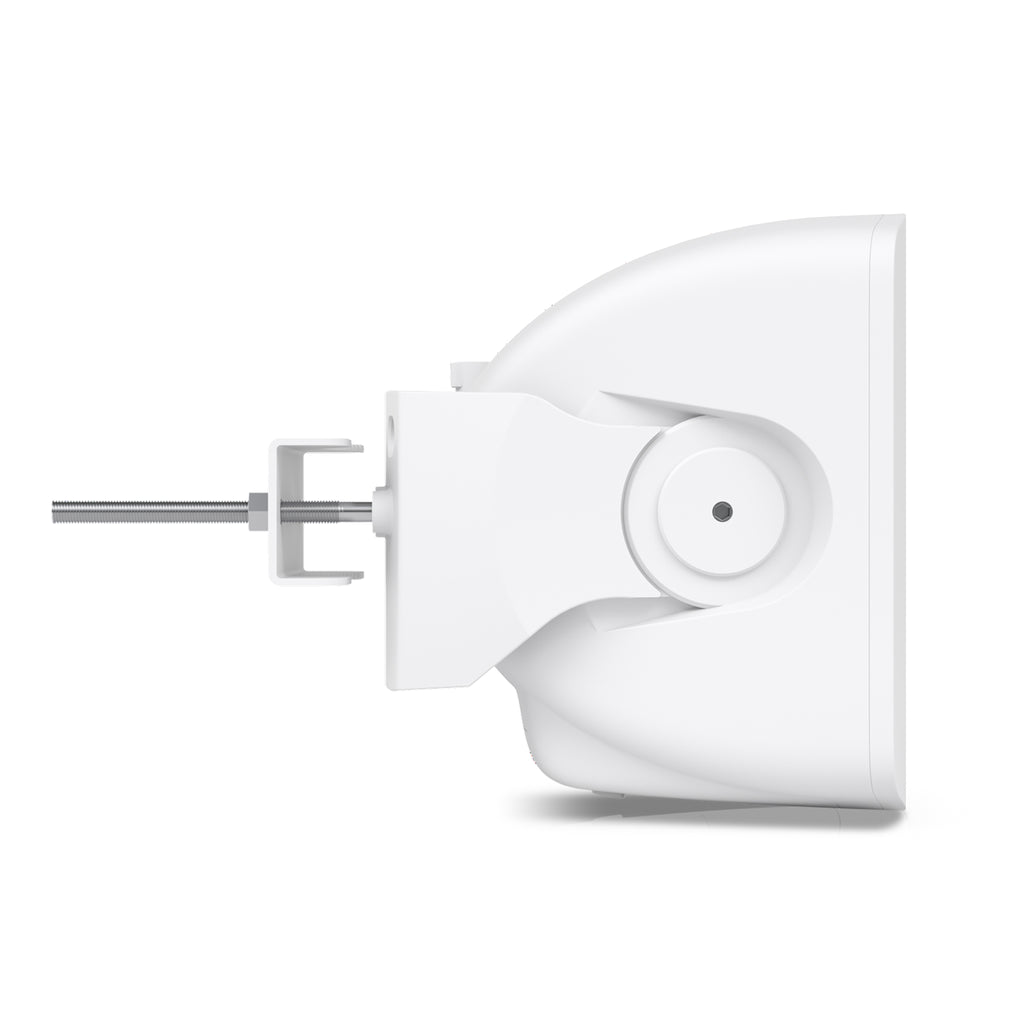

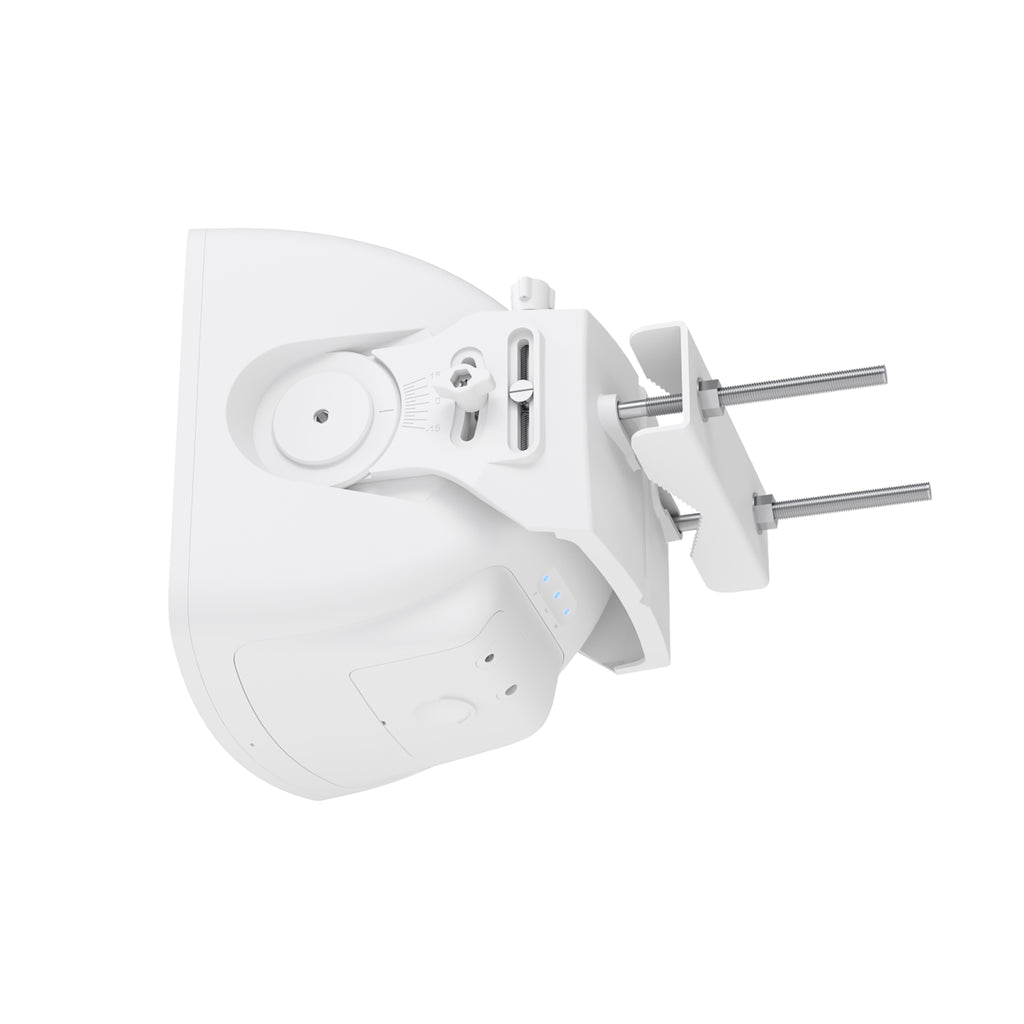

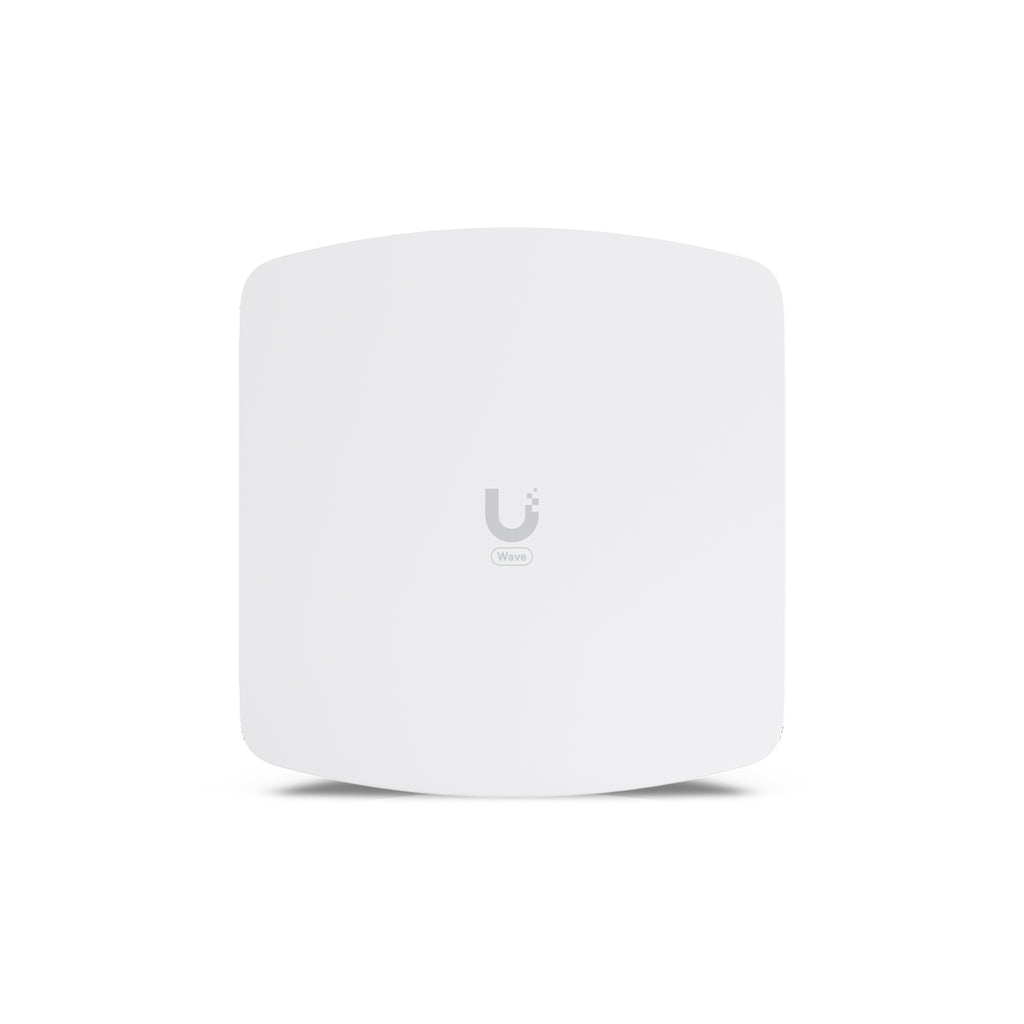

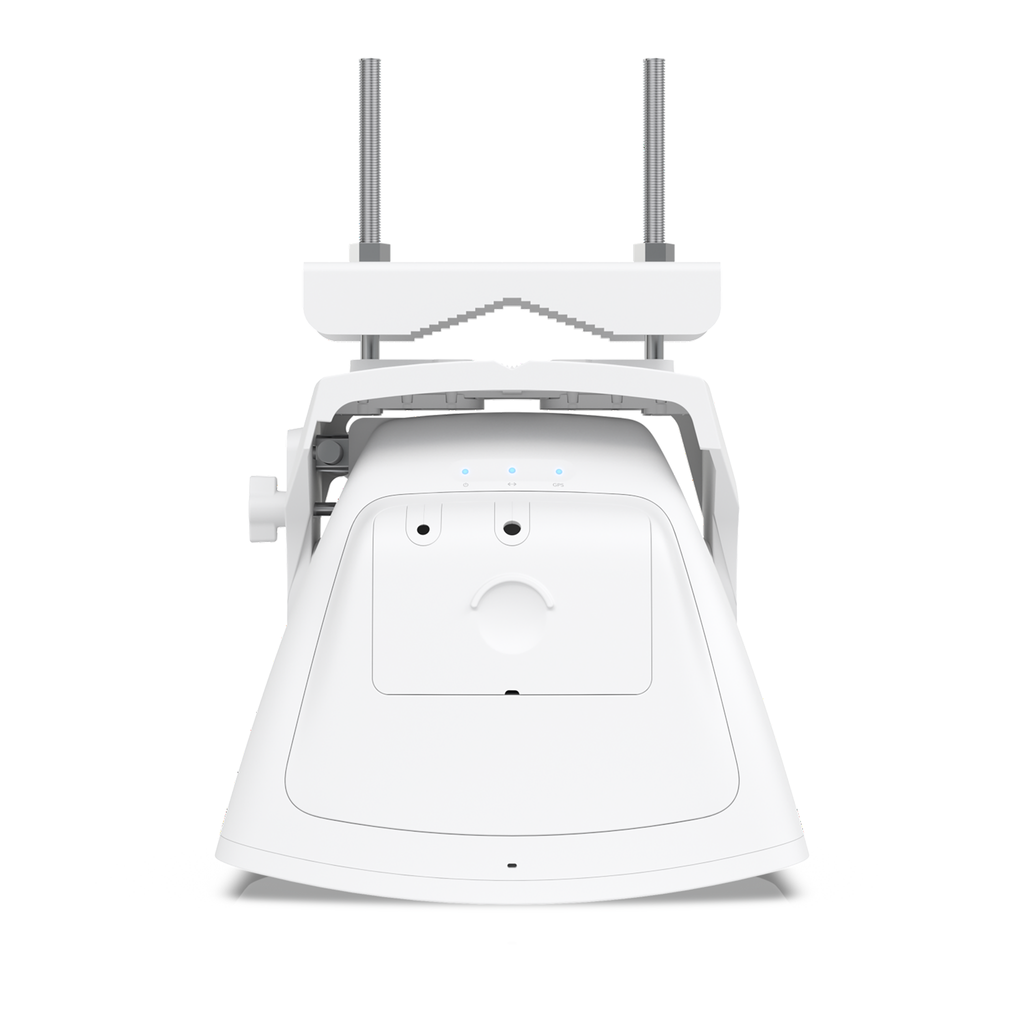

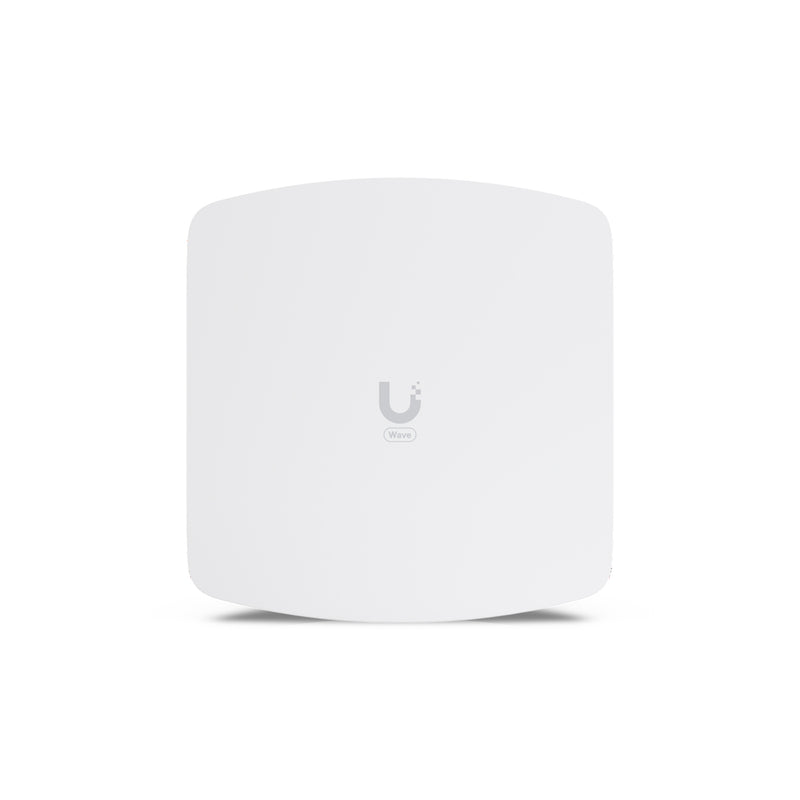

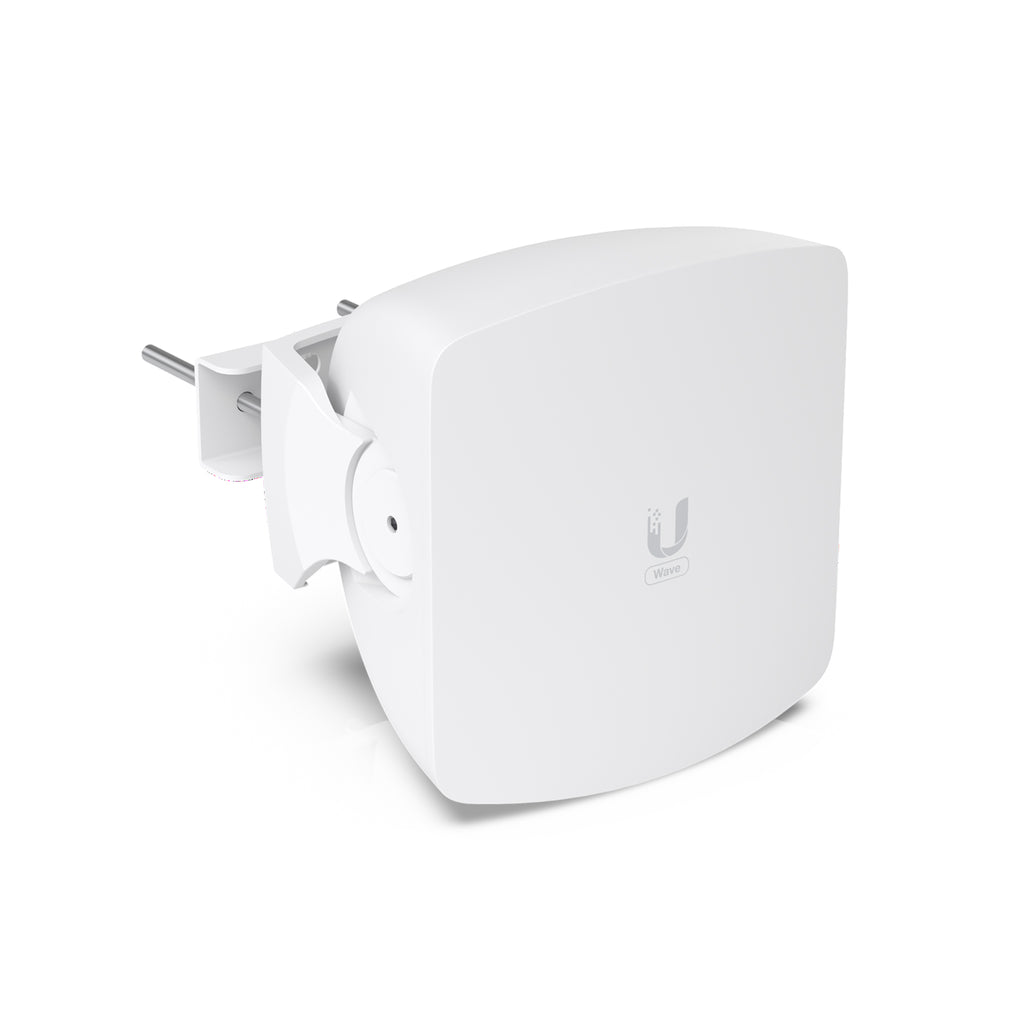

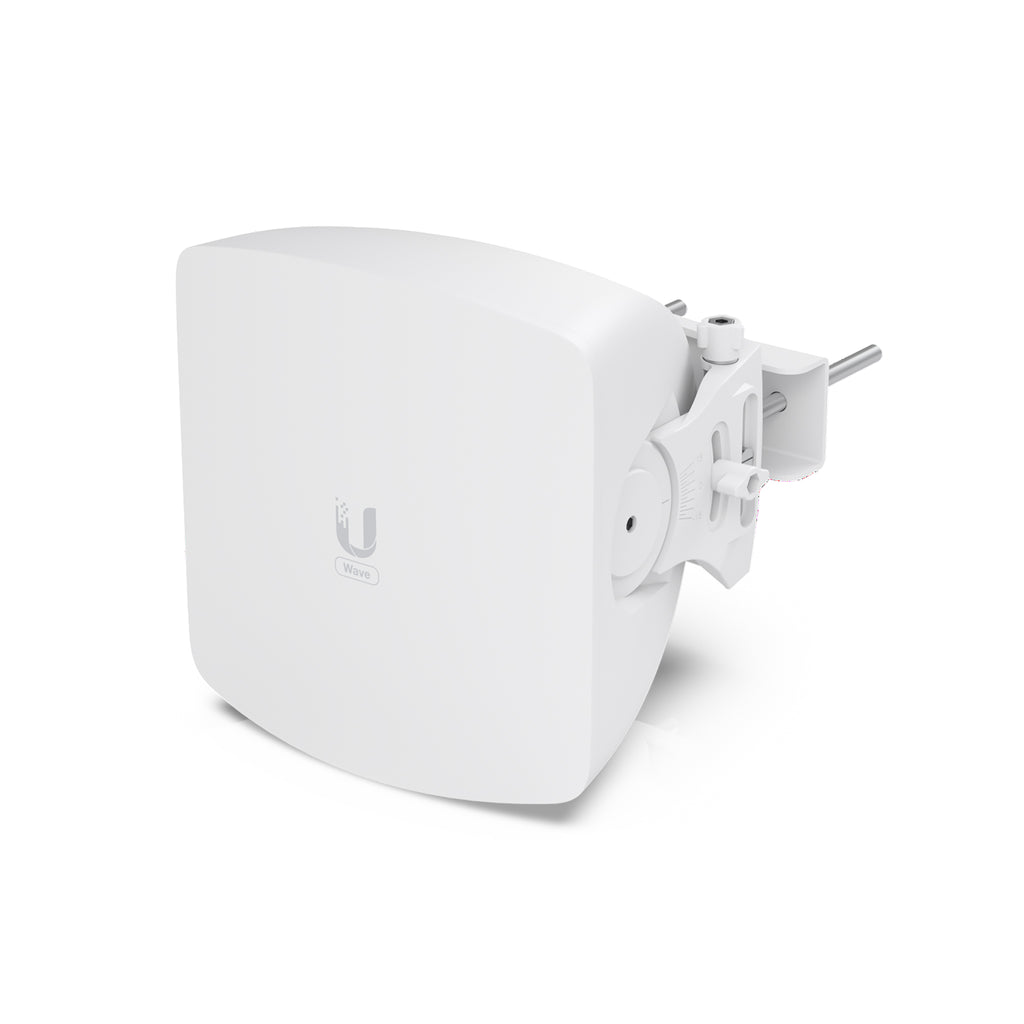

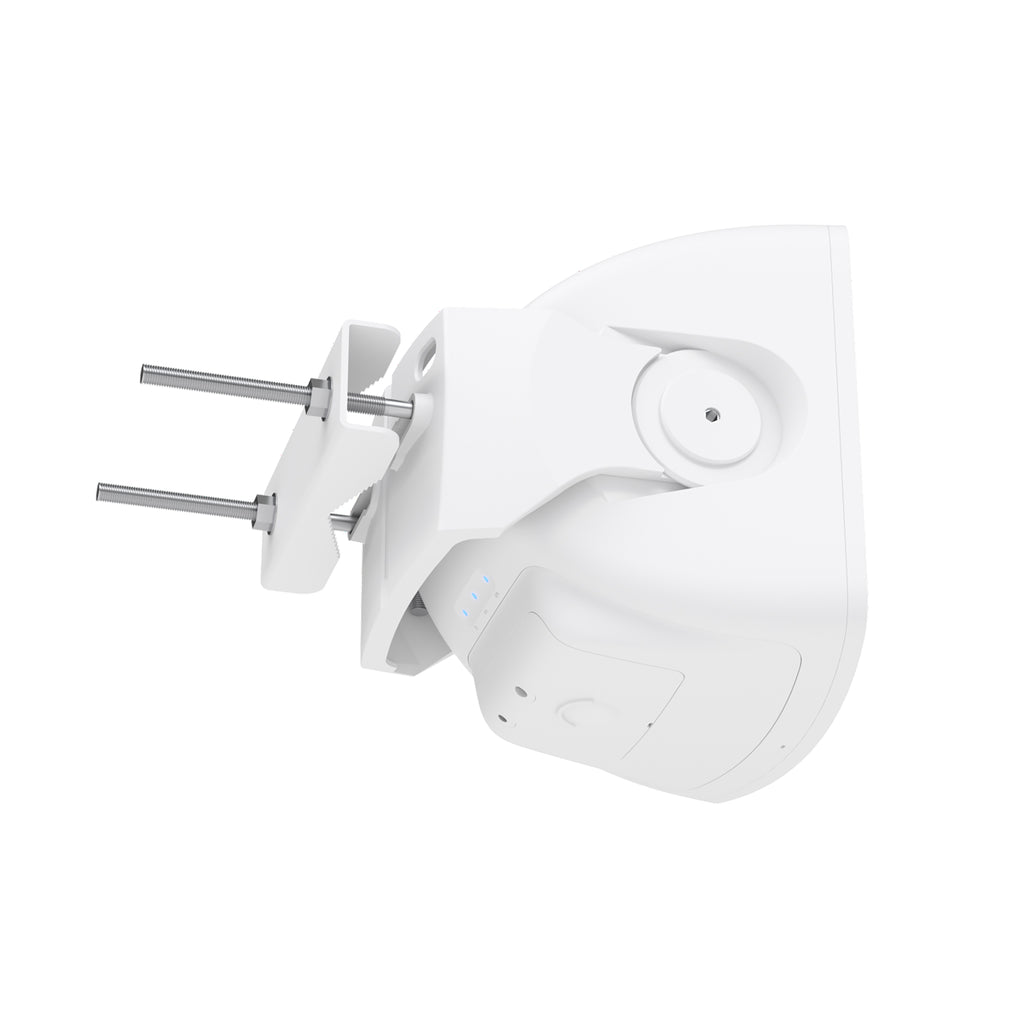

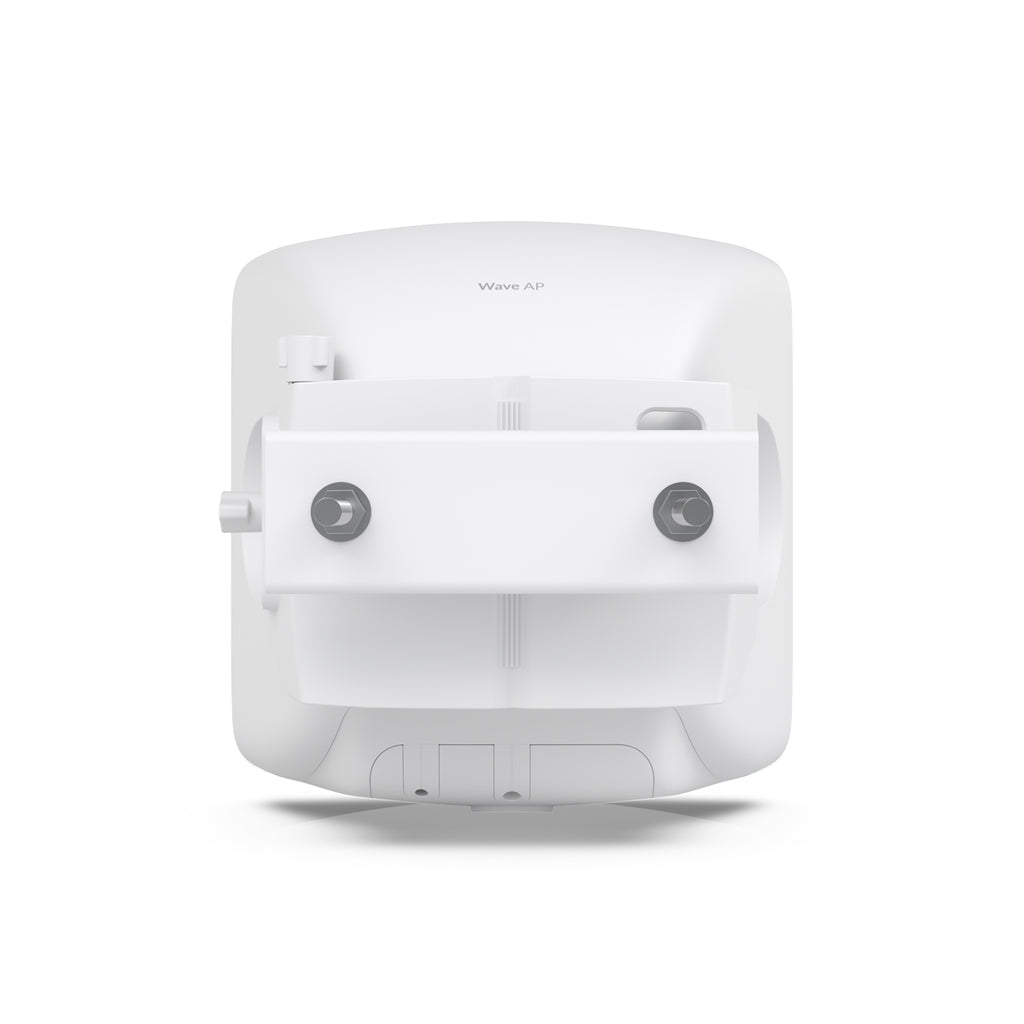

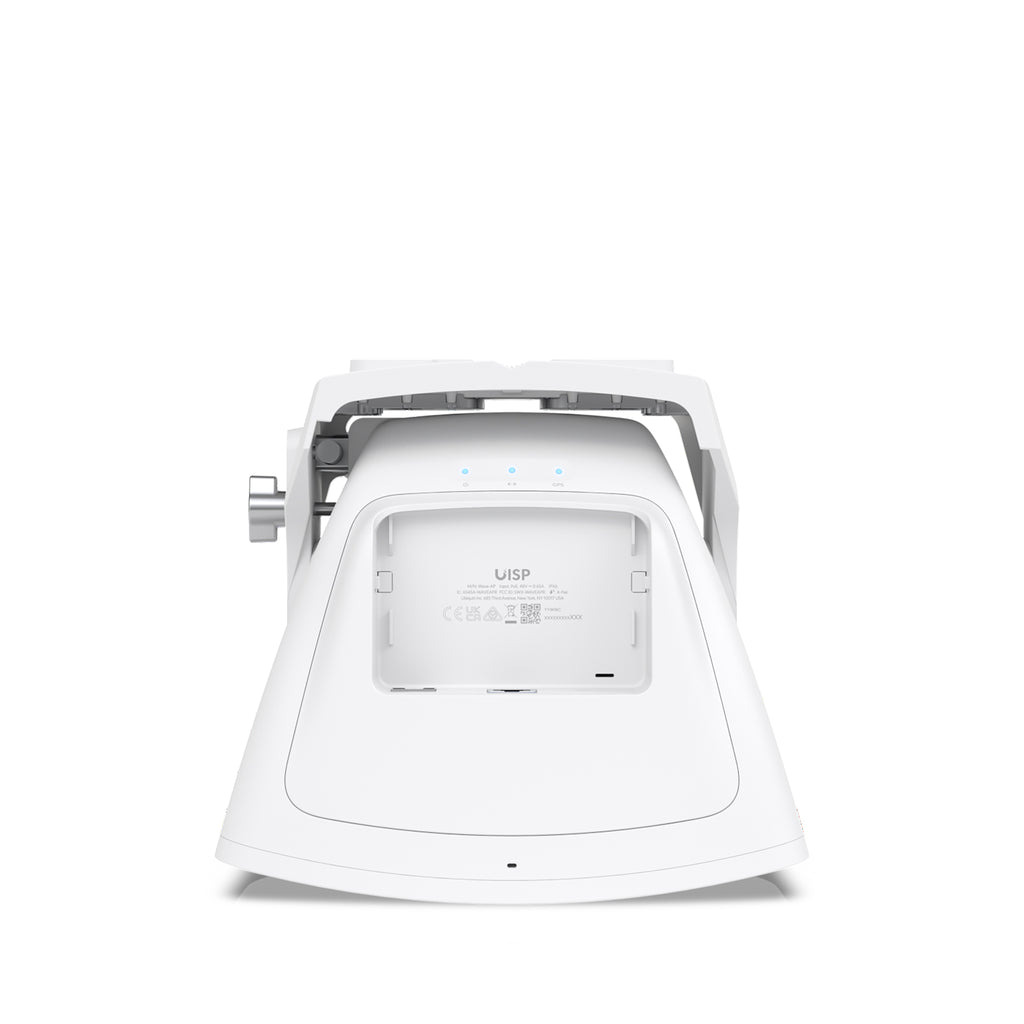

This 60 GHz PtMP access point is equipped with Wave Technology and offers a maximum throughput of 5 Gbps (2.5 Gbps duplex) and a 90° sector coverage. The 5 GHz weatherproof backup radio provides a maximum throughput of 800 Mbps.
| Manufacturer |
Ubiquiti |
| Manufacturer SKU |
WAVE-AP |
| Max. Transmission Speed |
5.4 Gbps |
| Max. Distance |
Connecting to a Wave Pro: up to 8 km
Connecting to a Wave Long-Range: up to 8 km
Connecting to a Wave Nano: up to 5 km
Connecting to a Wave Pico: up to 1.3 km |
| Antenna Gain |
24 dBi |
| Ingress Protection Rating |
IPX6 |
| Channel Bandwidths |
58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
*Depends on regulatory region. |
| Beamwidth |
Azimuth: 3 dB 30°, Elevation: 3 dB 3° |
| Polarization |
Vertically linear |
| Operating Mode |
Bridge mode |
| Networking Interface |
(1) 2.5GbE RJ45 port (100/1000/2500)*
(1) 10G SFP+ port (1/10)
* Active only when SFP+ port is down. |
| Dimensions |
212 x 205 x 187 mm |
| Weight |
2.3 kg |
| Power Supply |
48V DC, 0.65A 2.5GbE PoE adapter (Included) |
| Power Method |
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power Consumption (max)
|
24W |
| Operating temperature |
-40 to 60° C (-40 to 140° F) |
| Humidity |
5 to 95% noncondensing |
| Manufacturers Datasheet |
Datasheet |
| Installation Guide |
Installation Guide |
| Manufacturer Warranty |
1 Year |
