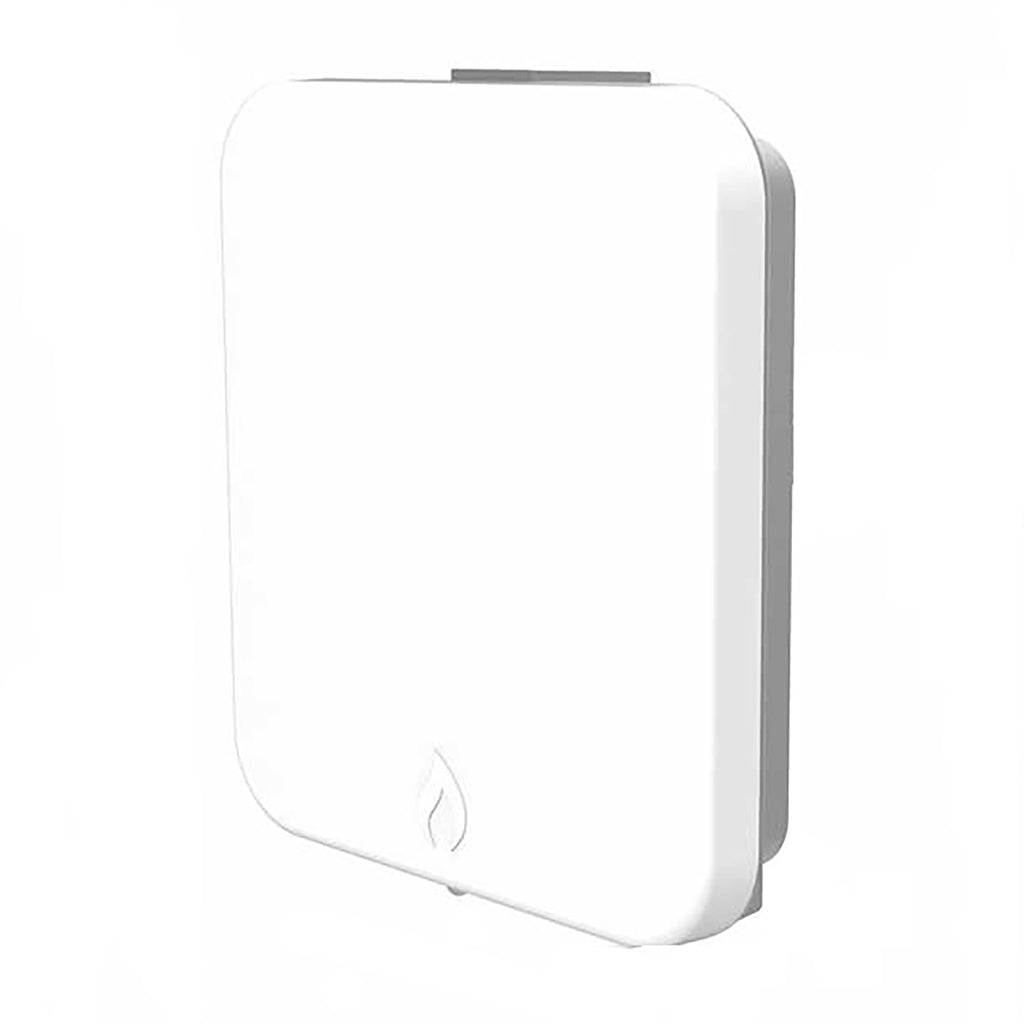

MetroLinq 2.5G 60 Beamforming Sector
The MetroLinq 2.5G 60 Beamforming Sector is a powerful 60 GHz MultiPoint base-station packed with the latest technologies from IgniteNet. This new radio can achieve 2.5 Gbps capacity allowing the construction of multi-gigabit, future-proof hybrid fibre wireless networks quickly and cost-effectively. Using the latest phased array beamforming antenna design allows 120º area coverage with an improved performance when focusing the signal to a specific client when data is transmitted and received.
120 degrees beamforming antenna
The new beamforming sector antenna has a 120 degree area coverage, but during the communication with each client device 16 narrow beam steps of 10 degrees are used, which improves noise immunity and assures security of your links.
The advanced operating system has a professional feature-set required to do point-to-point communication, which includes 128 bit AES encryption for security, Jumbo frame support, 5 GHz failover radio and many more. Each link can be configured individually and also using our cloud based controller.
Mounting bracket options
Two different mounting brackets are available to choose from for links in different distances and weather conditions.
MetroLinq Alignment Scope
An optional alignment Scope delivers unprecedented performance and ensures precise antenna positioning in the field, bringing accuracy during deployments, installations, and ongoing operations.
MetroLinq Linq Assist
An optional external USB dongle with Bluetooth support allows connecting to the device directly with your mobile device, which simplifies the on-site fine tuning.
1 Year Warranty
|Dimension||190 x 190 x 60 mm|
|Features||Support channel 4.5, Management VLAN support and VLAN pass-through, Supports Service Provider and Enterprise type networks, Stand-alone or Cloud-controlled operating modes, Base Station mode and up to 24 endpoints, Link failover/backup (60GHz + 5GHz) Per|
|Frequency Band||5 GHz, 60 GHz|
|Max Data Transfer Rates||2.5 Gbps|
|Max PtP Range||700m|
|Max PtMP Range||400m|
