Introducing the next generation AP7-PRO Wifi 7 Tri-Band access point by Alta Labs, providing 2x2 MIMO radios on the 2.4 GHz and 6 GHz bandsand 4x4 MIMO connectivity on the 5 GHz and lightning fast speeds and superior range.
The AP7-PRO supports PoE++ to accommodate the demands of the high-performance 10 Gbps Ethernet connection while looking sleek and stylish.
Guest Access
Looking to offer guest access ? Then the AP7-PRO has you covered.
Provide guests with temporary access to your WiFi network using vouchers. Perfect for
hospitality, restaurant, and other venues, vouchers can be given to your guests as a simple QR code that they scan with their mobile device.This provides a limited-time, limited-bandwidth connection using several easily customizable parameters in the management portal.
Scalability
The easy to use intuitive cloud based management interface allows you to deploy and manage multiple sites.
| Manufacturer |
Alta Labs |
| Manufacturer SKU |
AP7-PRO |
| Manufacturer SKU |
Indoor |
| Mimo |
6 GHz: 2x2, UL MU-MIMO, DL MU-OFDMA
5 GHz: 4x4, DL/UL MU-MIMO, DL/UL MU-OFDMA
2.4 GHz: 2x2, UL MU-MIMO, DL MU-OFDMA
Explicit TX Beam-Forming
|
| Wifi Standards |
802.11a/b/g/n/ac/ax/be (WiFi 4/WiFi 5/WiFi 6/WiFi 7) |
| Roaming |
802.11r/k/v |
| Wireless Security |
2.4 GHz, 5 GHz: WPA2-Personal (PSK), WPA3-Personal (SAE),
WPA-Enterprise (WPA2/WPA3)
6 GHZ: WPA3 - Personal (SAE), WPA3-Enterprise (192 bit) |
| Data Rate |
2.4 GHz: Up to 649 Mbps, 5 GHz: Up to 8.6 Gbps,
6 GHz: Up to 5.8 Gbps |
| Multiple SSID |
48 (16 per Radio), Unlimited per Site |
| Concurrent Users |
500+ |
| VLAN |
802.1Q |
| Advanced QoS |
802.11e |
| Guest Traffic Isolation |
Supported |
| Antenna Gain |
2.4 GHz: 4 dBi, 5 GHz: 4.75 dBi, 6 GHz: 4.5 dBi |
| Operating Temperature |
-30 to 50° C |
| Humidity |
5 to 95% Noncondensing |
| Power Supply |
PoE+ or PoE++ Enabled Network Switch,
or 48V, 1.25A PoE Adapter (Optional) |
| Power Method |
PoE+ for up to 2.5 Gbps, PoE++ for up to 10 Gbps |
| Max Power Consumption |
Max: 30 W for POE+, 35 W for POE++, 12 W Typica |
| Supported Voltage Range |
42.5-57V DC |
| Networking interface |
Ethernet, WiFi, Bluetooth |
| Management interface |
(1) 10 Gbps RJ45 Port |
| Dimensions |
230 x 151.3 x 36.9 mm |
| Weight |
1.04 kg |

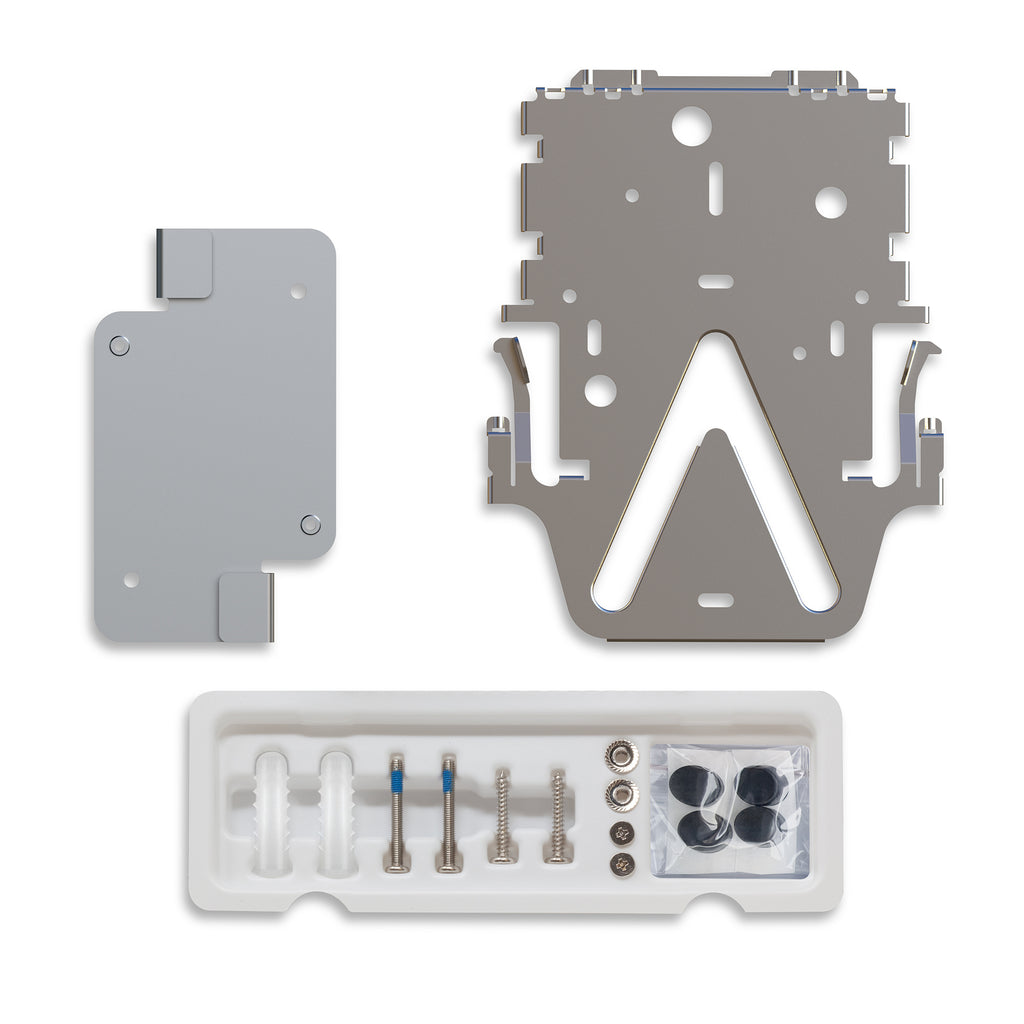

| Mounting
|
Wall, Ceiling, Drop-Ceiling, Table Top |
| Manufacturers Datasheet |
Datasheet |
| Manufacturers Quick Start Guide |
Quick Start Guide
|
| Manufacturer Warranty |
2 Years |
