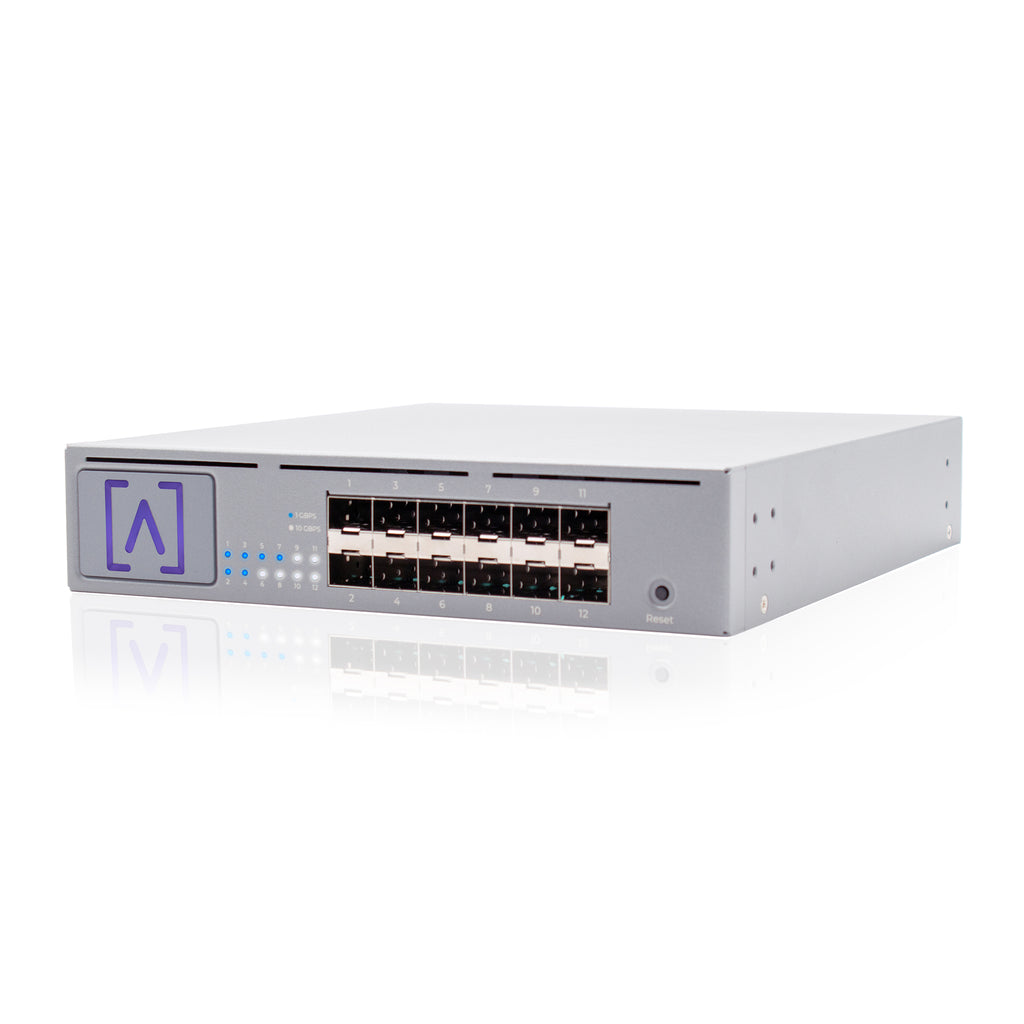

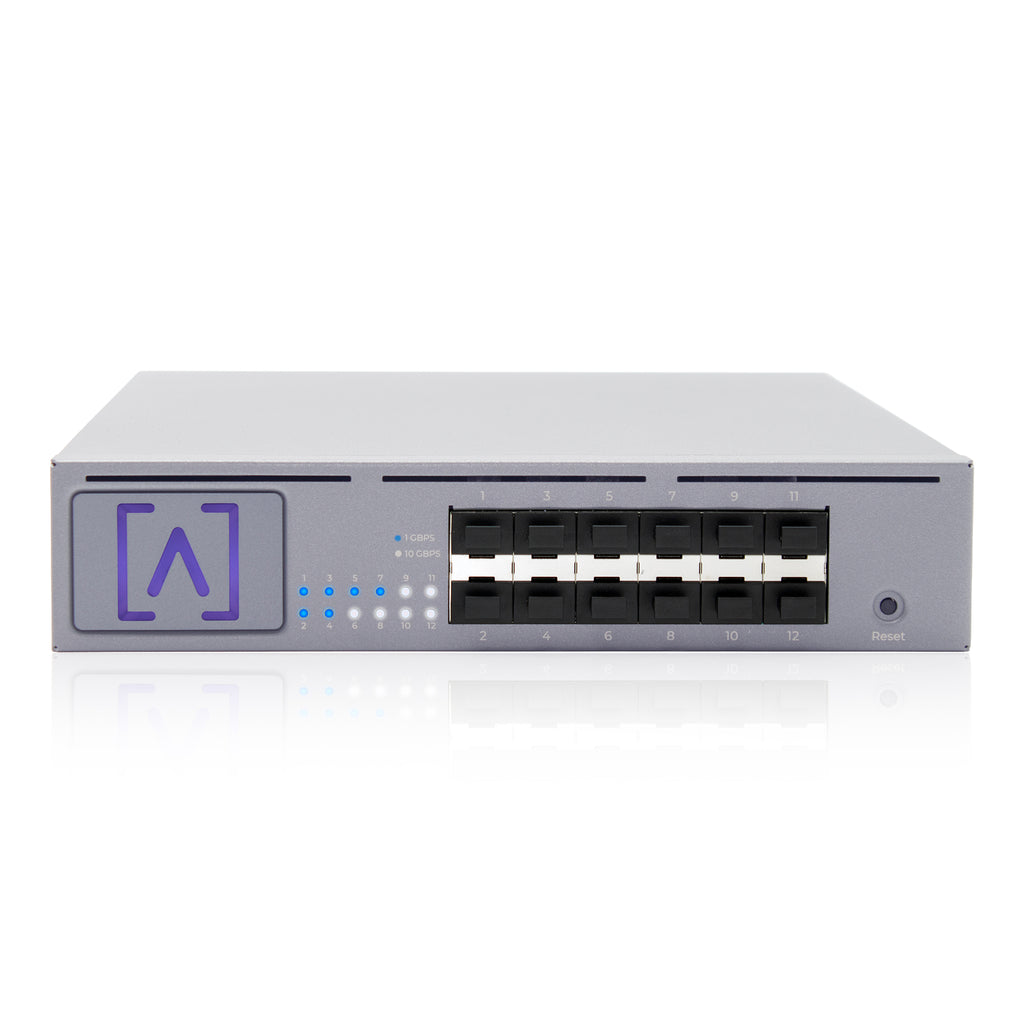

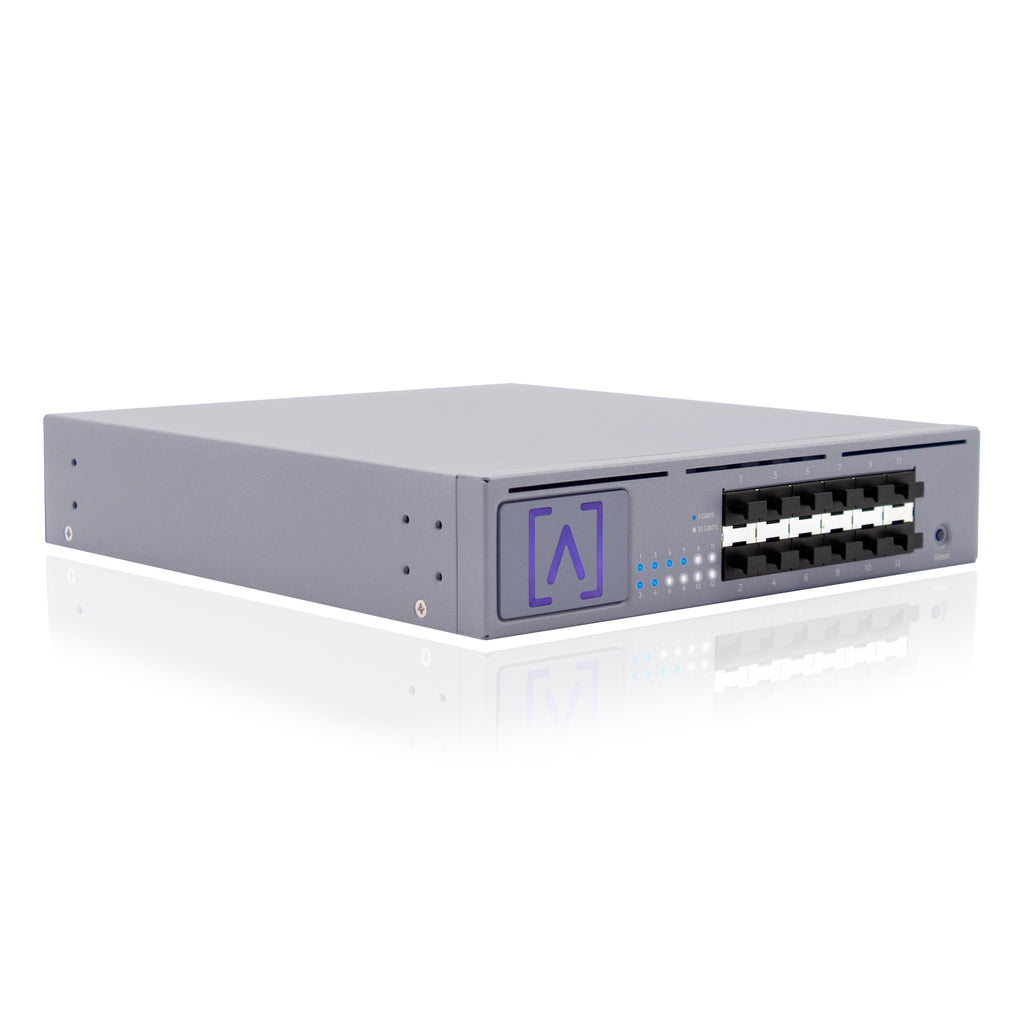

The S12 is the latest switch offering from Alta Labs.
It is a 12-port SFP+ distribution switch, designed to deliver high-performance connectivity in your enterprise and commercial deployments. Ideal for use in campuses, hotels, restaurants, resorts,entertainment venues, Pro AV, MDU (Multi-Dwelling Units), and any environment requiringeasy-to-use high-speed connectivity. The S12 features 12 SFP+ ports that each provide speeds of up to 10 Gbps.

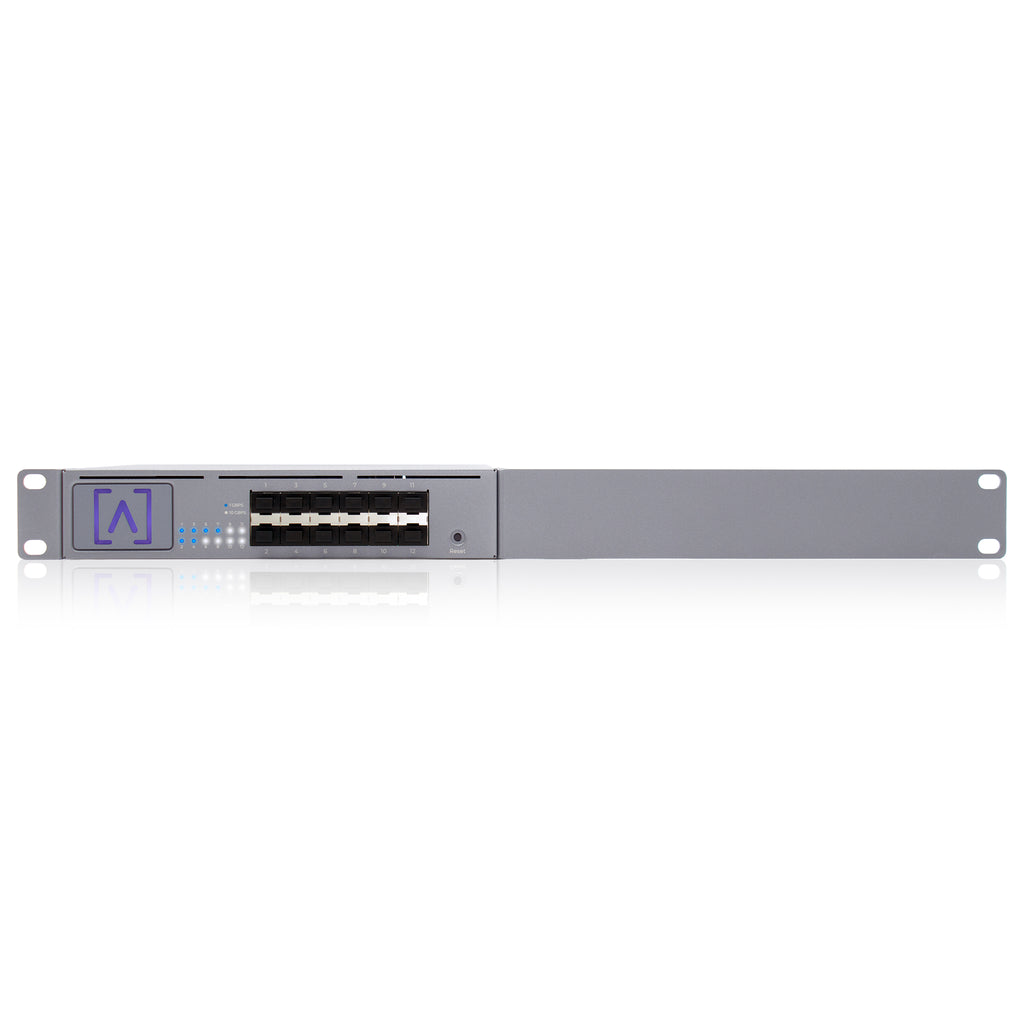

The S12 is a fully managed rackmountable switch with versatile mounting hardware which can be used for mounting on a wall or for use in a rack. An optional accessory bracket allows two S12 units be connected in a single 1U rackmount space. The S12 includes Bluetooth functionality for seamless device setup. Use the Alta Networks mobile app for quick and easy deployment and management from your mobile device.
| Manufacturer |
Alta Labs |
| Manufacturer SKU |
S12 |
| Band |
2.4 Ghz (For Bluetooth Setup) |
| Bluetooth Version |
BLE |
| SFP Ports
|
(12) SFP+ |
| Non‑blocking Throughput |
120 Gbps |
| Switching capacity (Gbps) |
240 Gbps |
| Forwarding rate
|
178.6 Gbps |
| MAC Address Table |
32K |
| Packet buffer
|
16 Mbit packet buffer |
| Power supply |
Universal AC, 100 - 240VAC 50-60Hz Internal |
| Idle Power Consumption
|
10 W |
Max Power Consumption w SFP
Transceivers in All Slots
|
35 W |
| Operating Temperature |
0 to 50° C (32 to 122° F) |
| Operating Humidity |
10 to 90% Noncondensing |
| Mounting |
Rackmount, Wallmount |
| Dimensions |
331 x 229 x 44 mm |
| Weight |
4.4 kg |
| Datasheet |
Datasheet
|
| Quick Start Guide |
Quick Start Guide
|
| Manufacturers Warranty
|
1 Year |
