Description

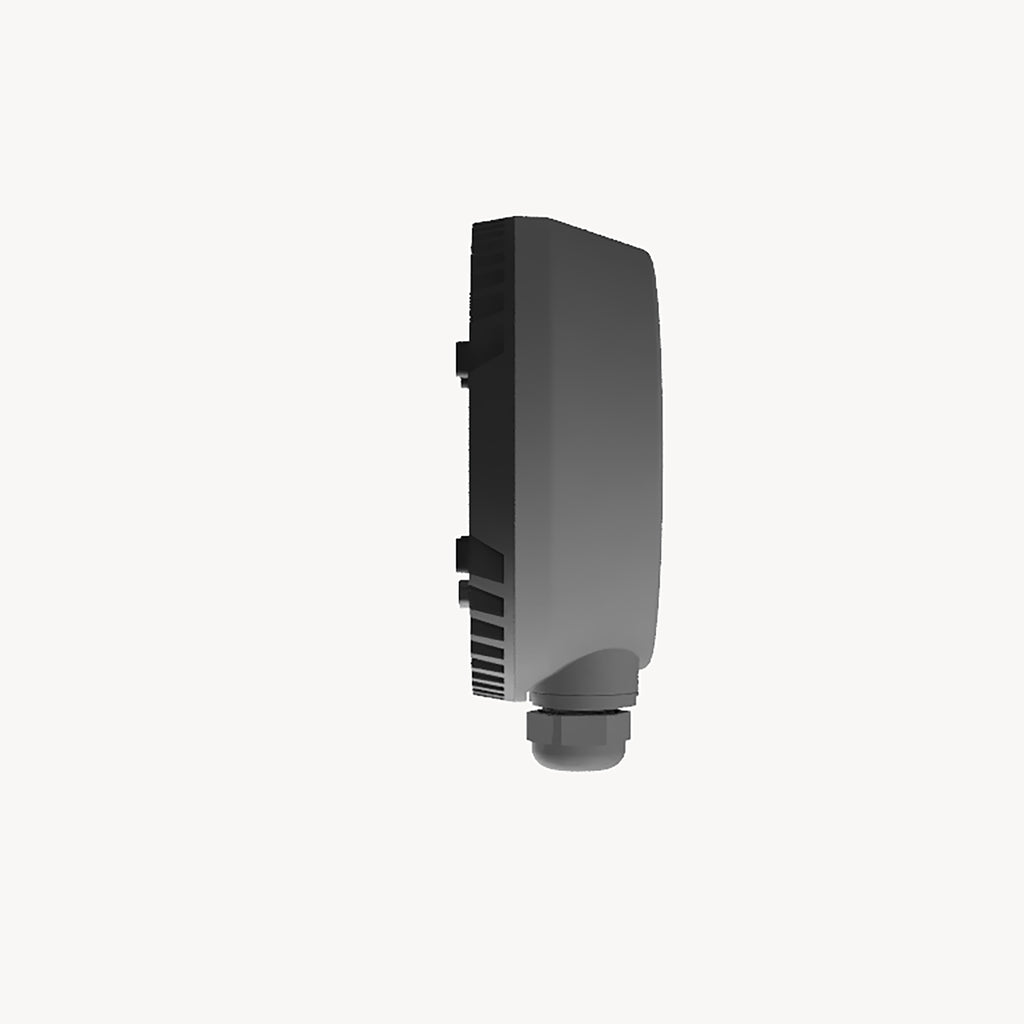

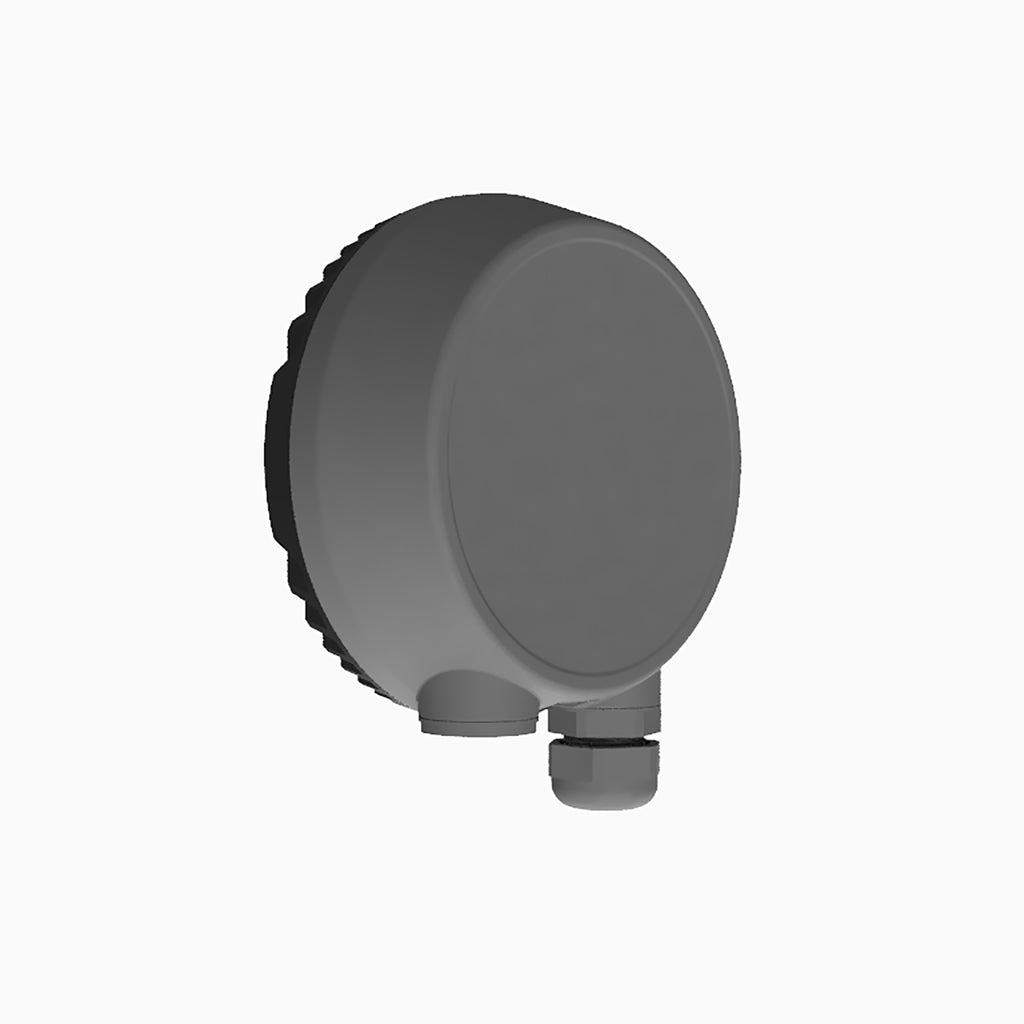

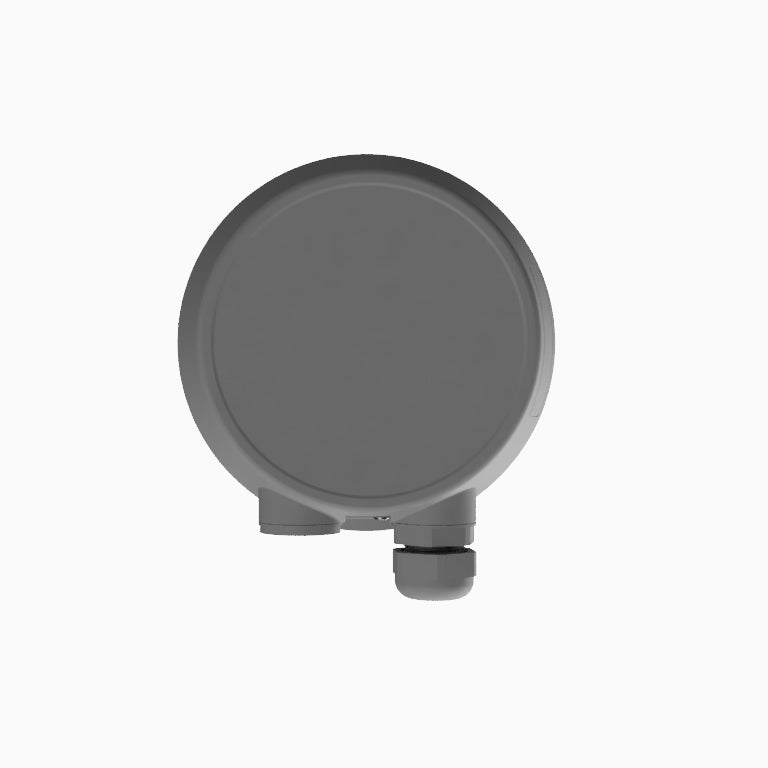

The NEW low cost 60GHz TNA-303L from Tachyon Networks can be used in point to point or multipoint scenarios.
Offering fibre-like speeds in an ultra-compact form factor, perfect for deployments where size matters without sacrificing performance. Providing upto 1 Gbps connectivity over distances of up to 400m (PTP) and 2+ km (PTMP) without trenching, permits, or licenses.
Upper-band support
All models support the full 60GHz band, including channels 5 and 6 (57-71 GHz), enabling longer linksand increased co-location opportunities.
| Manufacturer | Tachyon Networks |
| Manufacturer SKU | TNA-303L |
| Max. Transmission Speed | 1 gbps |
| Max. Distance | Subject to radio linking to |
| Beam steering | 90º x 50º |
| Duplexing | TDD |
| Management | Web interface, SNMP v2 & v3, SNMP traps, & RESTful API (SSH available upon request) |
| Frequency Bands | Full band: 57-71 GHz: channels: 1-6 Half channels: 1-12 (see notes on support site about half channel support) |
| Radio Mode | AP, Station, PTP (software configurable) |
| Interfaces | 1x 1G ethernet, 1x USB Type-A for aiming |
| Dimensions | Height: 13cm , Width 12 cm, Depth: 4.7cm |
| Weight | 425 g |
| Mounting | Pole mount included |
| PoE input power | Active PoE 38-57VDC (passive injector included) |
| Max power consumption | 15W |
| Operating temperature | -30°C - 55°C |
| Manufacturers Datasheet | Datasheet |
| User Guide | Operating Manual |
| Manufacturer Warranty | 1 Year |
