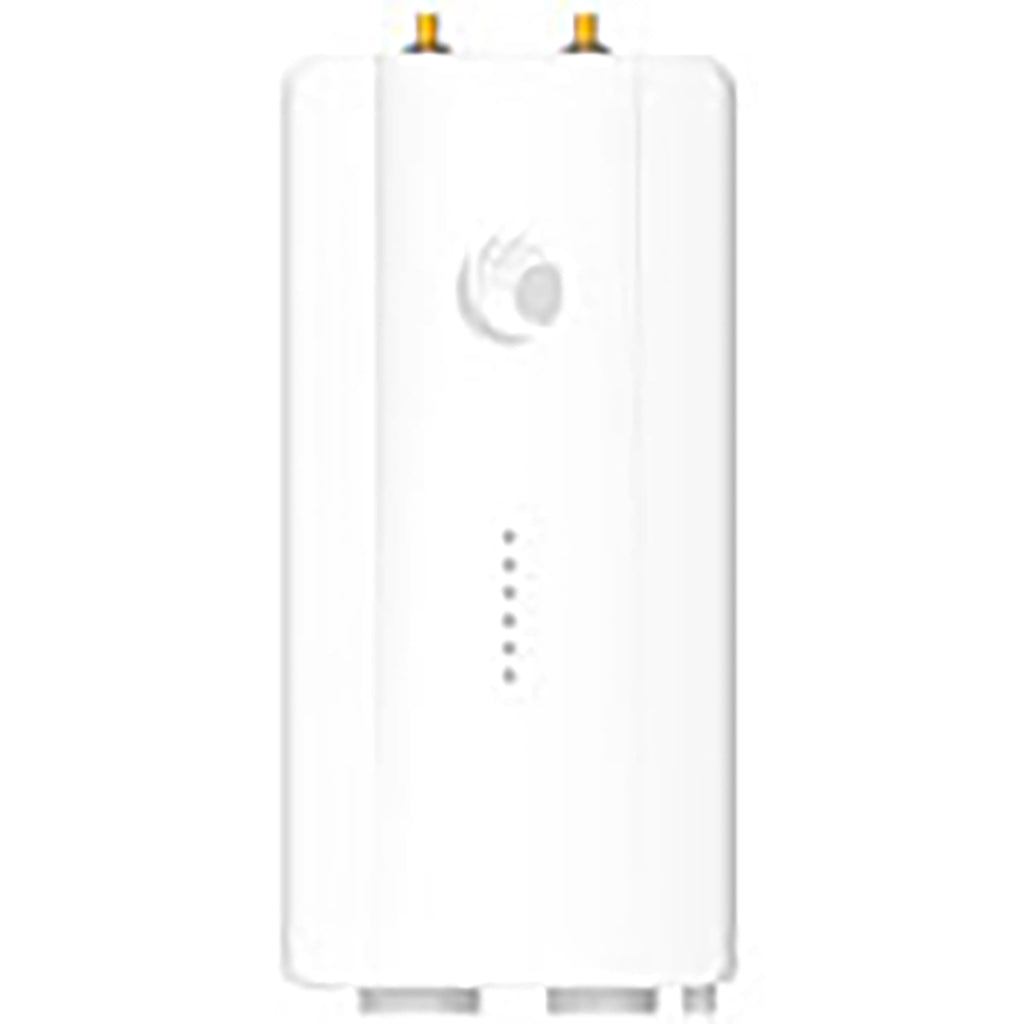

The Cambium ePMP 4500L 2x2 MIMO AP is connectorized with two RP-SMA for use with Cambium 90º/120º Degree Sector Antenna. This unit is also compatible with RF Elements Twistport™ adaptor for ePMP. Featuring the latest 1024QAM and 80 MHz channel bandwidth
technology, these access points deliver performance up to 1 Gbps.
| Manufacturer |
Cambium |
| Manufacturers SKU |
C050940A363D |
| Use Environment |
Outdoor |
| Outdoor Ingress Protection Rating |
IP67/68 |
| WLAN Standard
|
802.1Q with 802.1p priority |
| Subscribers per Sector |
Up To 120 |
| Radio Chains:streams |
2x2 MIMO |
| Antenna |
90º/120º 2x2 Sector Antenna
(C050900D021B) |
Sector Antenna
Connection |
2 x 50 ohm, RP (Reverse Polarity)
SMA
Also compatible with RF Elements
Twistport™ Adaptor for ePMP |
| Operating Temperature |
-40°C to 55°C
|
| Input voltage |
44V to 59V |
| Max Power Consumption |
28W maximum |
| Dimensions |
256 x 125 x 47 mm |
| Weight |
1.3 kg |
| Ethernet Interfaced |
100/1000 BaseT, rate auto
negotiated, 802.3at compliant &
Aux SFP+ port |
| Manufacturers Datasheet |
Datasheet |
