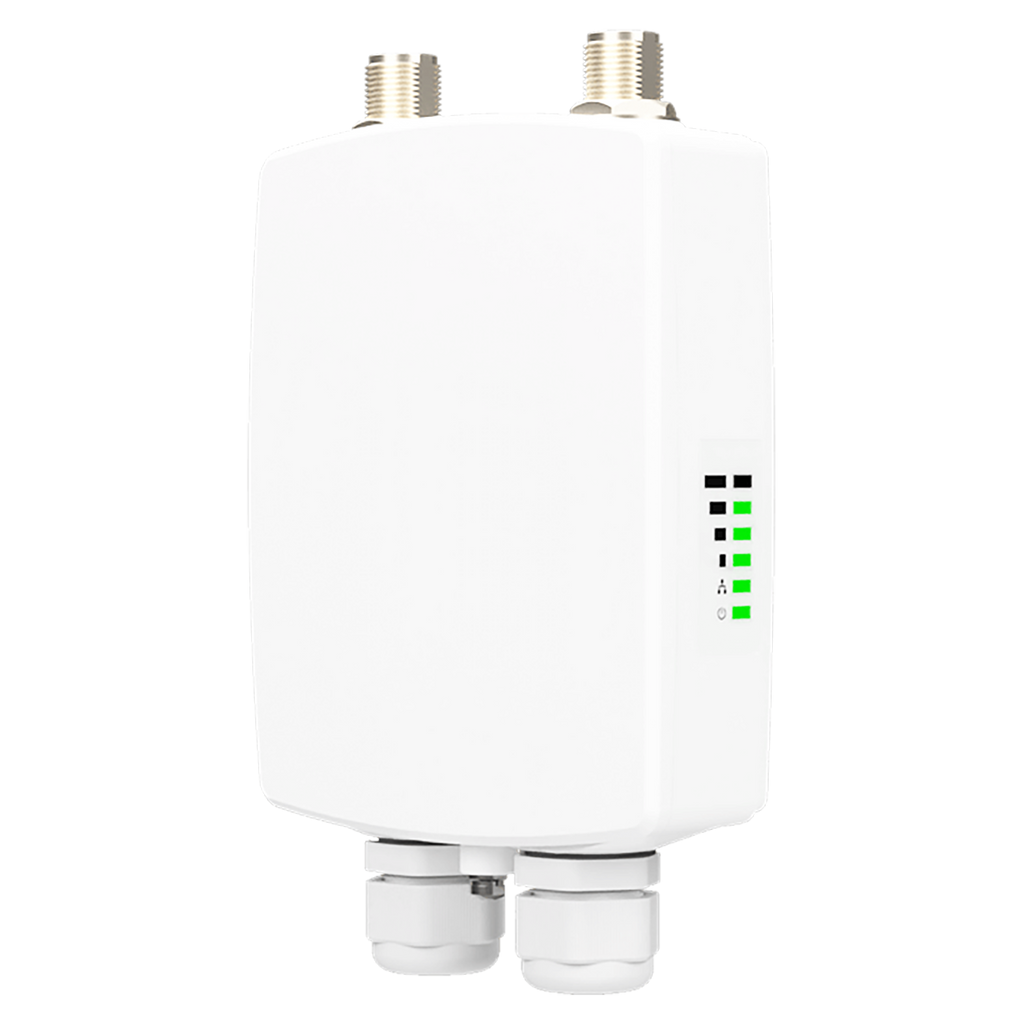

This compact but high powered Ligovision base station features N-Type connectors to attach external antennas, providing a versatile solution for a multitude of CCTV applications.
Incorporating a second Ethernet port with software-enabled PoE, dedicated for powering an external device at -48 VDC, such as an 802.3af PoE CCTV camera or any other LigoWave device
Equipped with a 750MHz QCA 9563 CPU, a QCA 9882 radio, and 64MB RAM/16MB Flash Memory, the LigoVision 5ac brings efficiency to the next level.
The advanced RF design of the LigoVision 5ac, equipped with N-type connectors for an external antenna, delivers exceptional output power, extended range, and supports high-capacity data transmission with 256-QAM modulation.
+500Mbps of throughput—the result of a powerful hardware platform with an 802.11ac technology-based radio and the LigoWave iPoll 3 Proprietary Protocol.
Infinity Controller
The Infinity Controller is a wireless network management platform available for the NFT series, LigoDLB series, LigoVision series, and LigoPTMP series (monitoring only). The controller allows users to install, manage, and expand NFT Wi-Fi networks and DLB networks using automated device onboarding, predefined network scenarios, and other features. The Infinity Controller for the DLB, Vision, and PTP series allows users to simplify the way they build, expand, and maintain their wireless networks.
Integrated Surge Protection
3kV line-to-ground and 1kV line-to-line protection allows operation und harsh weather conditions and unstable electrical installations.
| Manufacturer |
Ligowave |
| Manufacturer SKU |
LV-5AC |
| Max. Transmission Speed |
500+ Mbps |
| Transmit Power |
Up to +30dBm (Country Dependent) |
| Channel Size |
5, 10, 20, 40, 80MHz |
| Ingress Protection Rating |
IP-66 |
| Frequency Bands |
5 GHz |
| WLAN standard
|
IEEE 802.11a/n/ac, iPoll 3 |
| Radio Mode |
Dual 2×2 MIMO |
| Wired Interface |
10/100/1000 Base-T with PoE IN (RJ45 |
| 2nd Interface |
10/100/1000 Base-T with PoE OUT (RJ45) |
| Management |
Dedicated 2.4GHz radio, SNMP v3, Syslog, Web UI, WNMS, Infinity Controller |
| Dimensions |
150mm x 115mm x 55mm |
| Weight |
450g |
| Power Supply |
802.3at or -48 -56VDC passive PoE (AC to 48 VDC PoE Adapter Included) |
| Power Source
|
~100-240 VAC |
| Power Consumption (max)
|
Peak 10 W; Average 6W (Wihout PoE Output Function) |
| 2nd Ethernet Port Power Supply |
802.3af/passive 48VDC, up to 15W |
| Operating temperature |
–40°C (–40°F) ~ +65°C (+149°F) |
| Humidity |
0~90% (Non-Condensing) |
| Manufacturers Datasheet |
Datasheet |
| Installation Guide |
Guide |
| Manufacturer Warranty |
3 Years |
