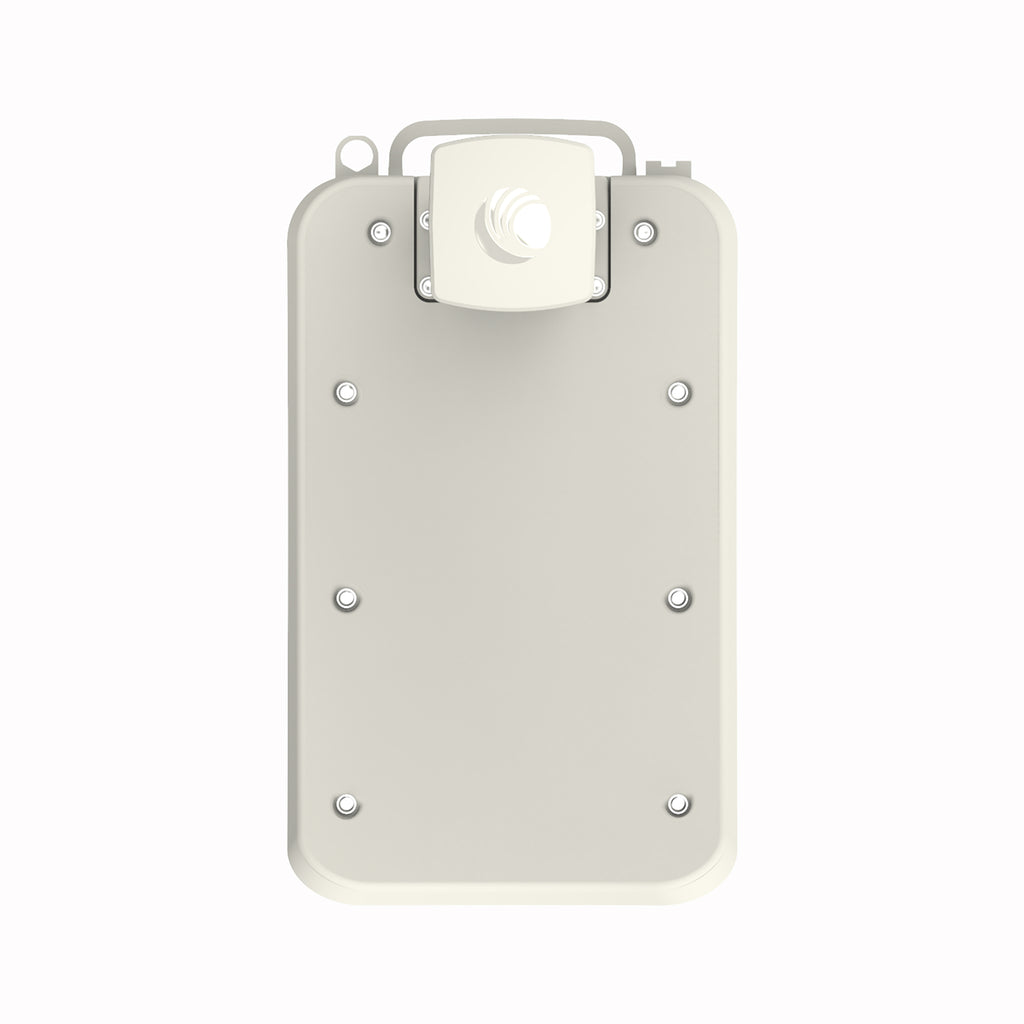

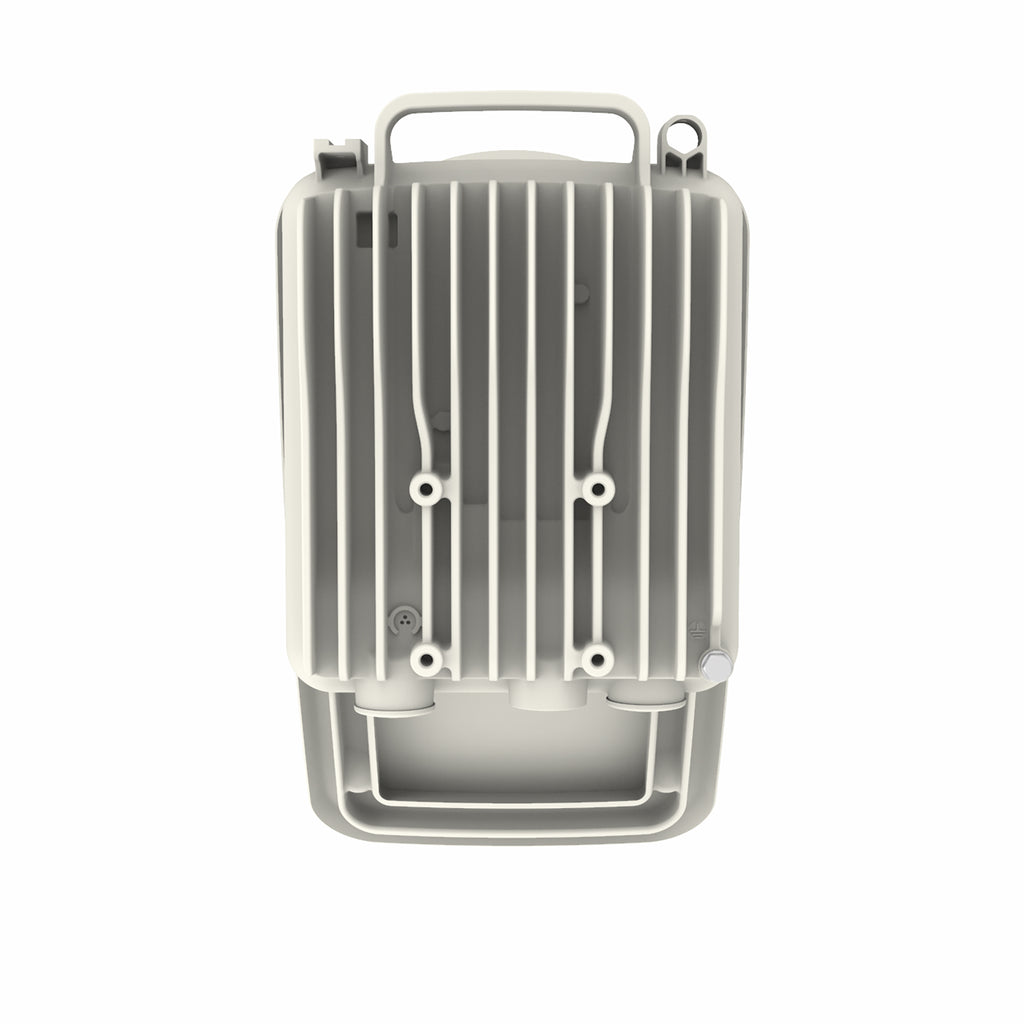

Rapidly deploy the Wi-Fi backhaul speed you need with 60 GHz cnWave V3000. Featuring a 44.5 dBi high-gain antenna with beamforming, the client nodes can support up to 7.6 Gbps with channel bonding for both point-to-multipoint (P2MP) and point-to-point (PTP) configurations.
Cambium Networks’ 60 GHz cnWave solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity Wi-Fi backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure.
Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave mesh solutions are highly efficient at handling high-density deployments in cities and suburban areas.
Manufacturer
Cambium Networks
Manufacturer SKU
C600500C024B
Spectrum
Frequency Range
57 to 66 GHz in a single SKU
Channel Width
2.16 GHz, 4.32 GHz (see datasheet)
Carrier Bonding
Up to 2 adjacent channels
Mode of Operation
PMP Client or PTP
Interface
Channel Access
TDMA/TDD
Ethernet Interface
1 x 100/1000/10G BaseT with PoE In, 1 x 100/1000 BaseT with 802.3at PoE Out, 1 x SFP+ 1G and 10G
