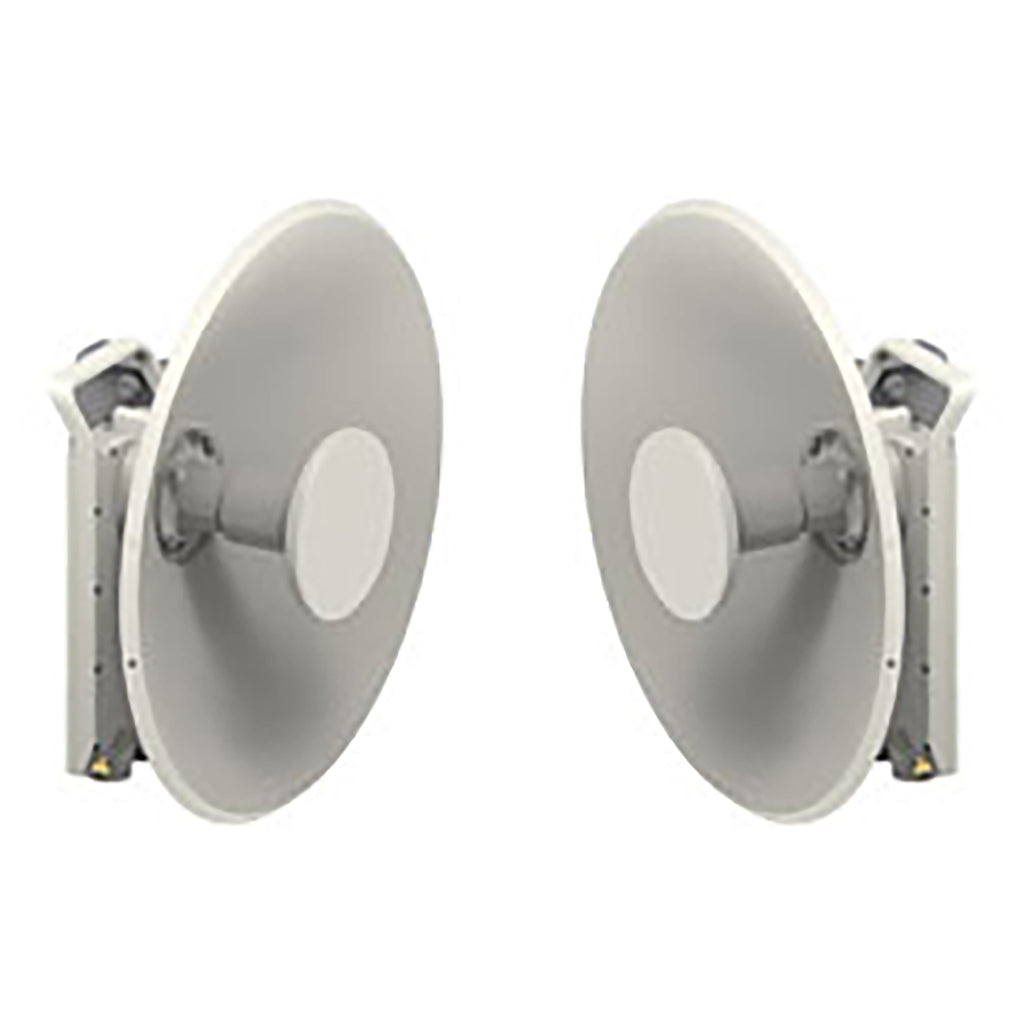

Introducting the Cambium Networks ePMP Force 425 point-to-point solutions which delivers up to 1 Gbps throughput perfect service providers looking to deliver high-capacity access services to enterprise and residential customers.
With an integrated SFP port and optional GPON ONU module, the Force 425 makes a great fiber extension to reach places where fiber cannot.
The Force 425 pushes this capacity farther than ever with an integrated 25 dBi dish (and even farther with the optional 28 dBi range extender, available separately). The optional range extender can be assembled and attached in the field to add additional link budget and fade margin for challenging links or to move to higher capacity, where needed, and higher modulations can be achieved.
For even longer range applications, the Force 400C is a connectorized option with two RP-SMA RF interfaces for use with larger parabolic dishes or horn antennas.
Leveraging the latest technology from the 802.11ax standard and Cambium’s proprietary ePTP mode, the Force 400 series delivers high spectral efficiency with features such as:
1024QAM
80 MHz channels
Highly efficient frame structure
Proven ePTP air interface
The Force 400 Series delivers Gbps performance with less than 5 ms latency.
The Force 400 series has enterprise-grade security with 128-bit AES over-the-air encryption (256-bit AES where export rules allow), secure management interfaces with roles-based authentication, and standards-based device authentication including RADIUS support. It’s built for real-world applications with IP67 ruggedization, simplified mounting scheme, and Cambium’s 3-year hardware warranty.
| Manufacturer |
Cambium |
| Manufacturer SKU |
C050940M303D |
| Max. Transmission Speed |
1 Gbps |
| Frequency Range |
Wide-band operation ROW Models: 4920–6180 MHz, FCC/IC Models: 4920–5885 MHz (Note: Country-dependent based on local regulations) |
| Transmit Power Range |
+3 to +28 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Maximum Distance |
In PTP application deployments, the maximum distance supported is 32 km (19.9 mi) |
| Antenna Type |
Dish |
| Antenna gain level (max) |
25 dBi |
| 3 dB Beamwidth Azimuth |
7° |
| 3 dB Beamwidth Elevation |
7° |
| Ethernet Interfaced |
100/1000 BaseT, compatible with Cambium PoE & Standard PoE pinouts; SFP/SFP+ |
| Protocols Used |
IPv4/IPv6 (dual management stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management |
IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks’ cnMaestro |
| VLAN |
802.1Q with 802.1p priority |
| Connectors |
1 x RJ-45, 1 x SFP |
| Environmental |
IP67/68 including metal housing |
| Temperature |
-30°C to 55°C (-22°F to 131°F) |
| Weight |
4.8 kg (10.6 lbs.) |
| Dimensions |
470 mm diameter x 285 mm depth
|
| Power Consumption |
28W |
| Input Voltage |
802.3at or passive PoE 44-59 V |
| Included Power Supply |
100-230VAC ,56V, 30W, PoE adaptor |
| Manufacturers |
Datasheet |
| Planning Guide |
Planning Guide
|
| Manufacturers Warranty |
3 Years |
