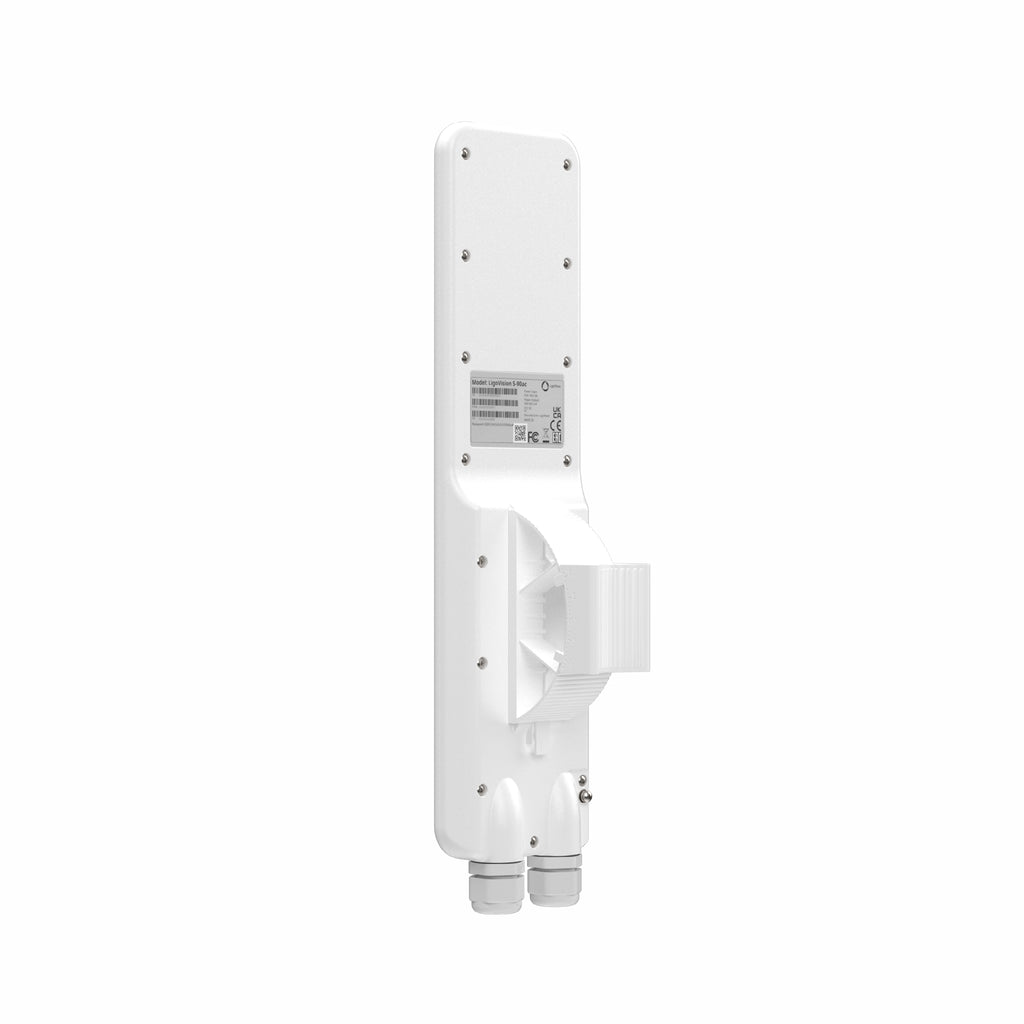

The LigoVision Series has been designed with CCTV applications in mind.
With 500+ Mbps throughput driven by a powerful hardware platform with 802.11ac technology based radio and a proprietary data transmission protocol (iPoll). Incorporating a QCA 9563 CPU (750MHz), a QCA 9882 radio and 64MBytes of RAM and 16MBytes of flash memory the, LigoVision series devices are an ideal solution for quality and capacity demanding
CCTV applications.
The PoE out port allows to connect an IP camera without the need for a PoE switch
iPoll and QoS mechanisms minimize latency, while prioritizing voice and video traffic. iPoll with triple play support and uplink enhancements enables more cameras to be deployed in network/or higher image quality cameras to be deployed using the same hardware generation.
| Manufacturer |
Ligowave |
| Manufacturer SKU |
LV-5-90AC |
| Max. Transmission Speed |
500+ Mbps |
| Antenna Gain |
18dBi |
| Transmit Power |
Up to +30dBm (Country Dependent) |
| Channel Size |
5, 10, 20, 40, 80MHz |
| Ingress Protection Rating |
IP-66 |
| Frequency Bands |
5 GHz |
| WLAN standard
|
IEEE 802.11a/n/ac, iPoll 3 |
| Radio Mode |
Dual 2×2 MIMO |
| Management |
Dedicated 2.4GHz radio, SNMP v3, Syslog, Web UI, WNMS, Infinity Controller |
| Dimensions |
380 x 100mm x 35mm
|
| Weight |
460g |
| Power Supply |
802.3at or -48 -56VDC passive PoE (AC to 48 VDC PoE Adapter Included) |
| Power Source
|
~100-240 VAC |
| Power Consumption (max)
|
Peak 10 W; Average 6W (Wihout PoE Output Function) |
| 2nd Ethernet Port Power Supply |
802.3af/passive 48VDC, up to 15W |
| Operating temperature |
–40°C (–40°F) ~ +65°C (+149°F) |
| Humidity |
0~90% (Non-Condensing) |
